Product Overview: NLSV1T244MUTBG from ON Semiconductor

The NLSV1T244MUTBG is a versatile, high-performance single-bit dual-supply non-inverting level translator fabricated by ON Semiconductor. This device is designed to address the need for a reliable solution to interface applications that involve different voltage domains. It is particularly suitable for bi-directional voltage level translation from any voltage between 0.9V and 4.5V to any voltage between 1.65V and 5.5V, making it an ideal component for multi-voltage systems such as portable devices, computing, and consumer electronics.

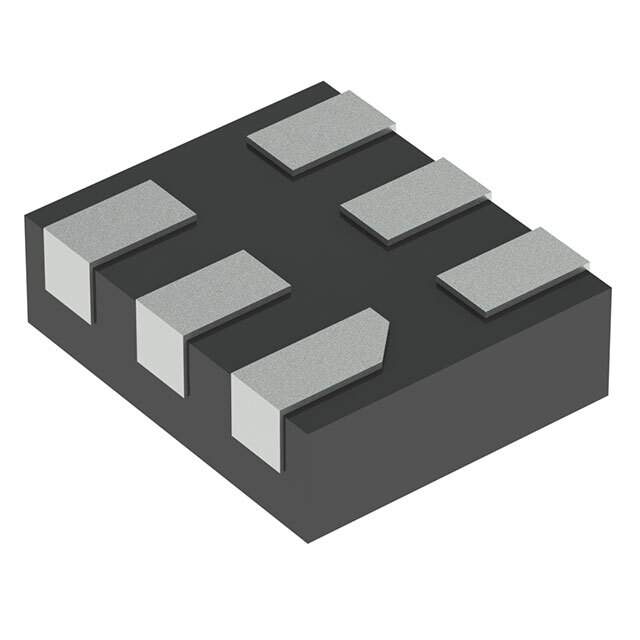

With its ultra-small μDFN6 package, measuring just 1.0 x 1.45 mm, the NLSV1T244MUTBG is optimized for space-constrained applications. Despite its compact size, it offers robust performance characteristics that include a low quiescent current and broad compatibility with various logic levels. Its bidirectional interface allows for seamless communication between high and low voltage circuits without the need for a direction control signal, simplifying design and reducing component count.

Key features of the NLSV1T244MUTBG include its wide voltage translation range, high-speed operation with propagation delays typically less than 6 ns, and the ability to drive up to 4 mA of output current. This makes it capable of supporting high-speed interfaces such as SPI, I2C, or UART with minimal signal distortion. Additionally, the device is equipped with over-voltage tolerant I/O ports to 5.5V, ensuring compatibility with higher voltage logic levels and providing a safeguard against voltage spikes.

The NLSV1T244MUTBG is designed for ease of use, with a simple two-pin interface for each voltage domain. It does not require an external pull-up resistor, which further simplifies the design and reduces the bill of materials. The device also features power-down protection on all inputs and outputs, ensuring that the I/O lines are in a high-impedance state when the power is off, thereby preventing any potential damage to the translator or other components in the circuit.

In summary, the NLSV1T244MUTBG from ON Semiconductor is a high-quality, reliable solution for voltage level translation in multi-voltage systems. Its small footprint, low power consumption, and robust feature set make it an excellent choice for designers looking to bridge different logic levels seamlessly and efficiently.
