ON Semiconductor NTD20N06T4G Overview

The NTD20N06T4G is a high-performance Power MOSFET from ON Semiconductor, designed to cater to a wide range of applications requiring efficient power management and high-speed switching. This MOSFET is a member of ON Semiconductor's Power MOSFET portfolio, well-known for their reliability and performance in power electronics.

Key Features

• High Drain-Source Breakdown Voltage (V<sub>DS): With a breakdown voltage of 60V, the NTD20N06T4G can handle high voltage applications, making it suitable for automotive and industrial power systems.
• Continuous Drain Current (I<sub>D): It supports a continuous drain current of 20A, ensuring it can manage significant power for its size.
• Low On-Resistance (R<sub>DS(on)): The device features an on-resistance of just 47 mΩ (max) at V<sub>GS = 10V, which means lower power losses and improved efficiency in operation.
• Fast Switching Speed: Its fast switching capability enhances the performance in circuits requiring high-frequency operation.
• Low Gate Charge (Q<sub>g): A low gate charge facilitates faster switching and reduced drive power requirements.
• Temperature Performance: The NTD20N06T4G can operate over a wide temperature range, making it versatile for various environmental conditions.

Applications

The NTD20N06T4G is ideal for a diverse range of applications, including:

• Power supply switches
• DC-DC converters
• Motor drives
• Automotive applications
• Power management for consumer electronics

Package and Quality

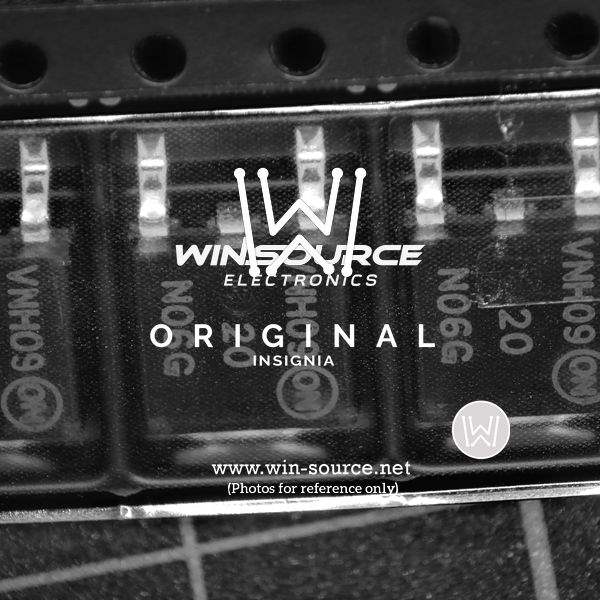

Encased in a DPAK (TO-252) package, the NTD20N06T4G combines a compact form factor with the capability to handle high thermal and electrical loads. ON Semiconductor's commitment to quality ensures that the NTD20N06T4G meets rigorous industry standards for performance and reliability.

With its robust design and advanced technology, the NTD20N06T4G from ON Semiconductor is a solid choice for engineers and designers looking to enhance the efficiency and reliability of their power management systems.
