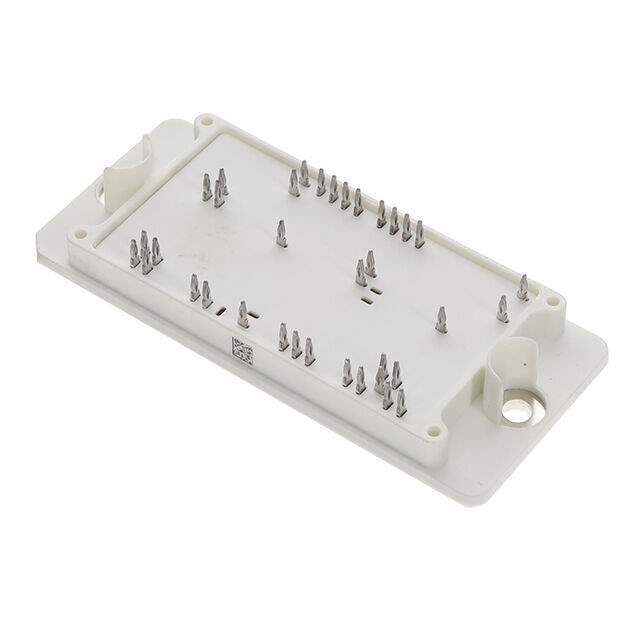

NXH450N65L4Q2F2PG onsemi
Same model may have multiple batches, images only for reference.

NXH450N65L4Q2F2PG

Part No NXH450N65L4Q2F2PG
Manufacturer ON Semiconductor
Catalog IGBTs - Modules
Description 650V 450A 3-LEVEL NPC INVERTER M
Datasheet
NXH450N65L4Q2F2PG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307525-NXH450N65L4Q2F2PG
Category Discrete Semiconductor Products Transistors IGBTs IGBT Modules
Manufacturer onsemi
Packaging Tray
Part Status Active
IGBT Type Trench Field Stop
Configuration Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) 650 V
Current - Collector (Ic) (Max) 167 A
Power - Max 365 W
Vce(on) (Max) @ Vge, Ic 2.2V @ 15V, 225A
Ultra Librarian 3D Model Ultra Librarian NXH450N65L4Q2F2PG CAD Model

Description

  • Neutral Point Clamped Three−Level Inverter Module
  • 650 V Field Stop 4 IGBTs
  • Low Inductive Layout
  • Solderable Pins
  • Thermisto
