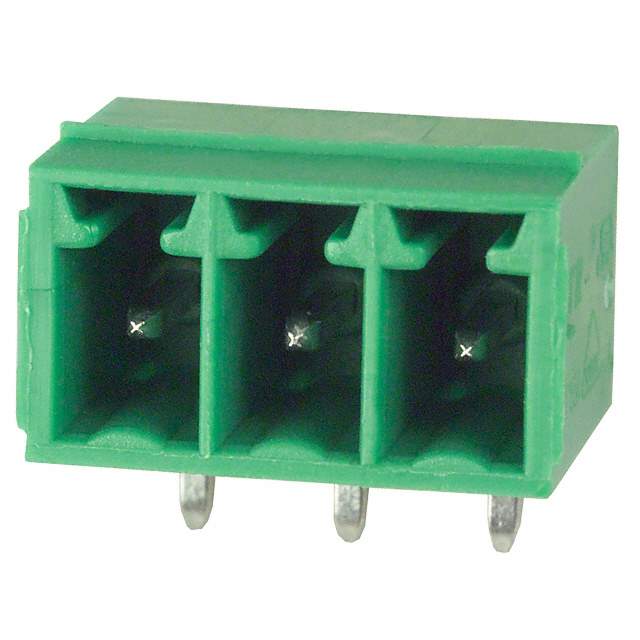

EDSTLZ1550/3 Real Image
Same model may have multiple batches, images only for reference.

EDSTLZ1550/3

Part No EDSTLZ1550/3
Manufacturer On Shore Technology Inc.
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 3POS 90DEG 3.81MM / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Solder
Datasheet
EDSTLZ1550/3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer On Shore Technology Inc.
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation 90°, Right Angle
Mounting Solder
Voltage - UL 300 V
Temperature Range - Operating -30°C ~ 105°C
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.276" (7.00mm)
Base Product Number EDSTL
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number EDSTLZ15503,ED1935-NDR,ED1935
Standard Package 200
Win Source Part Number 1332159-EDSTLZ1550/3
Ultra Librarian 3D Model Ultra Librarian EDSTLZ1550/3 CAD Model

Description

The On Shore Technology Inc. 1332159-EDSTLZ1550/3 is a 3-position, 3.81mm pitch, shrouded header with male pins.

  • Positions: 3
  • Pitch: 3.81mm
  • Type: Shrouded Header with Male Pins
  • Connector Type: Terminal Block
  • Orientation: Right-Angle (90 degrees)
  • Housing Material: Polyamide (PA) Nylon
  • Temperature Range: -30°C to 105°C
  • Contact Tail Length: 3.50mm
  • Insulation Height: 7.00mm
  • Mounting Type: Through Soldering
  • Packaging: Bulk
  • Standard Package: 200 units
  • Compliance: ROHS3 compliant
  • REACH: Unaffected
