Same model may have multiple batches, images only for reference.

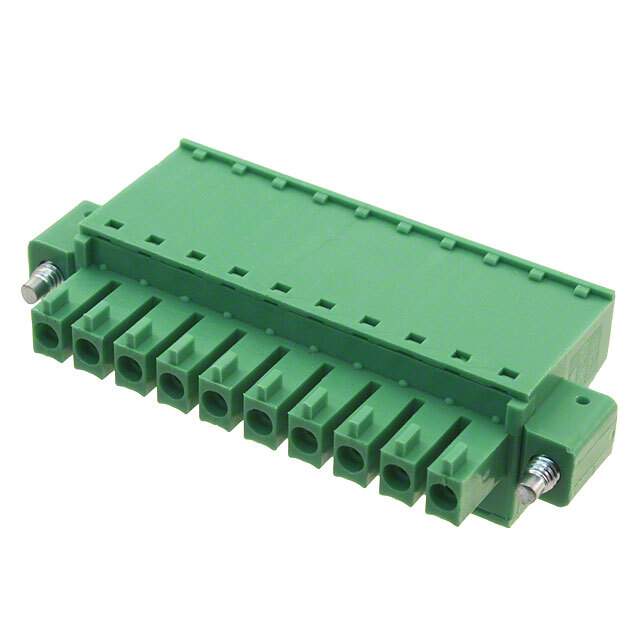

VM1035520000G

Name: VM1035520000G
Brand: Amphenol Anytek
SKU: 1339768
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	VM1035520000G
Manufacturer	Amphenol Anytek
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 10POS STR 3.81MM / 10 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Amphenol Anytek
Series	03-381
Package	Bulk
Type	Plug, Female Sockets
Number of Positions	10
Positions Per Level	10
Number of Levels	1
Pitch	0.150" (3.81mm)
Plug Wire Entry	180°
Termination Style	Screw - Pressure Clip
Mounting Type	Free Hanging (In-Line)
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	16-28 AWG
Wire Gauge or Range - mm2	0.5-1.5mm2
Color	Green
Temperature Range - Operating	-40°C ~ 115°C
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Screw Size	M2
Torque - Screw	0.2 Nm (1.7 Lb-In)
Wire Strip Length	6-7mm
Contact Material	Copper Alloy
Housing Material	Thermoplastic Resin
Insulation Height	0.854" (21.69mm)
Base Product Number	VM10
Standard Package	2,040
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339768-VM1035520000G
Ultra Librarian 3D Model	Ultra Librarian VM1035520000G CAD Model

Alternative Products

Description

The VM1035520000G is a terminal block plug with female sockets from Amphenol Anytek.

Positions per Level: 10
Total Positions: 10
Pitch: 0.150 inches (3.81mm)
Plug Wire Entry: 180 degrees
Termination Style: Screw-Pressure Clip
Current Rating (UL): 10A
Current Rating (IEC): No Rating
Voltage Rating (UL): 300V
Wire Gauge (AWG): 16-28 AWG or 0.5-1.5mm2
Contact Mating Finish: Tin
Color: Green
Mating Flange: Yes
Packaging: Bulk
Standard Package: 2040
Screw Size: M2
Mounting Type: Free Hanging (In-Line)
Insulation Height: 0.854 inches (21.69mm)
Operating Temperature: -40 degrees Celsius to 115 degrees Celsius
Series: 03-381
