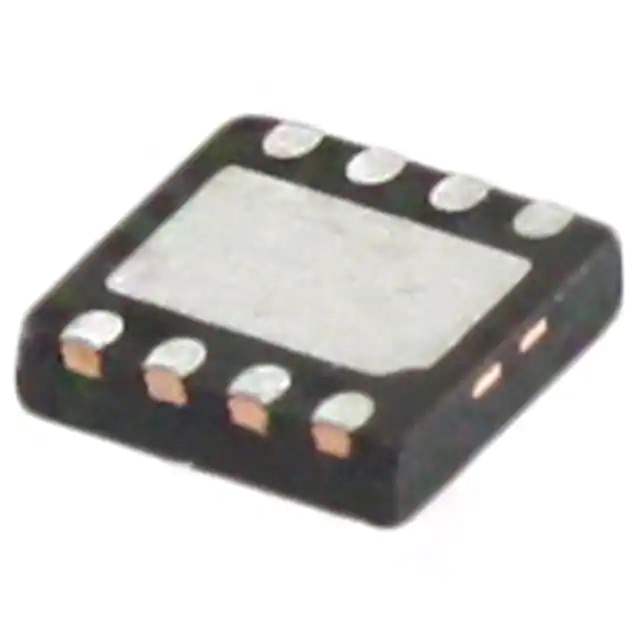

AS1364-BTDT-AD Real Image
Same model may have multiple batches, images only for reference.

AS1364-BTDT-AD

Part No AS1364-BTDT-AD
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR POS ADJ 1A 8TDFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr OSRAM Opto Semiconductors Inc.
Package Tape & Reel
Product Status Obsolete
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1.2V
Voltage - Output (Max) 5.3V
Voltage Dropout (Max) 0.32V @ 1A
Current - Output 1A
Current - Quiescent (Iq) 150 µA
Current - Supply (Max) 200 µA
PSRR 72dB ~ 46dB (1kHz ~ 100kHz)
Control Features Enable, Power Good
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-WDFN Exposed Pad
Supplier Device Package 8-TDFN (3x3)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 564566-AS1364-BTDT-AD
Ultra Librarian 3D Model Ultra Librarian AS1364-BTDT-AD CAD Model

Description

The 564566-AS1364-BTDT-AD is a linear voltage regulator integrated circuit (IC) for power management.

  • Regulator Type: single
  • Output Type: adjustable
  • Maximum Input Voltage: 5.5V
  • Maximum Output Voltage: 5.3V
  • Current Output: 1A
  • Current Supply: 200µA
  • Control Features: enable and power good
  • Protection: over current and over temperature
  • Package Type: 8-WDFN Exposed Pad
  • Mounting: surface mountable
  • Temperature Range: -40°C to 85°C
  • PSRR: ranges from 72dB to 46dB from 1kHz to 100kHz
  • Current Quiescent: 150µA
  • REACH: unaffected by REACH regulations
  • Manufacturer: OSRAM Opto Semiconductors Inc.
  • Status: now obsolete
