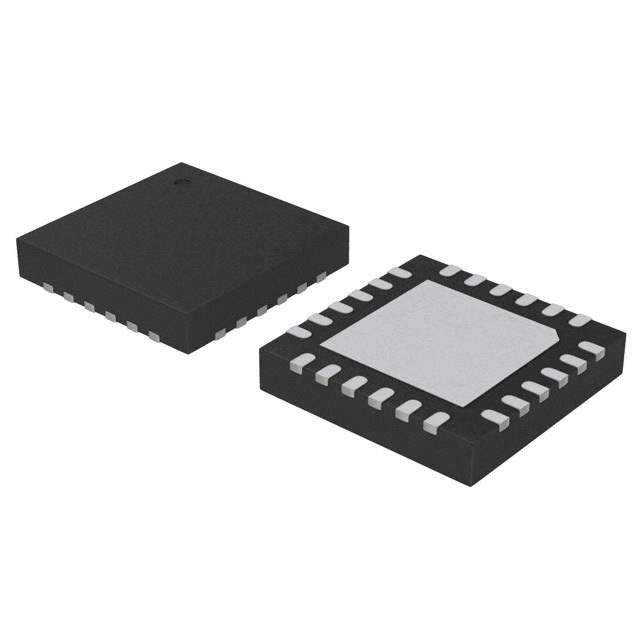

AS3682-EA1 Real Image
Same model may have multiple batches, images only for reference.

AS3682-EA1

Part No AS3682-EA1
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR 400MA 24QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr OSRAM Opto Semiconductors Inc.
Package Tape & Reel
Product Status Obsolete
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 6
Voltage - Supply (Min) 3V
Voltage - Supply (Max) 5.5V
Voltage - Output 5.3V
Current - Output / Channel 400mA (Flash)
Frequency 1MHz
Applications Backlight, Camera Flash
Temperature Range - Operating -30°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 24-VFQFN Exposed Pad
Supplier Device Package 24-QFN (4x4)
Base Product Number AS3682
Standard Package 6,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 564684-AS3682-EA1
Ultra Librarian 3D Model Ultra Librarian AS3682-EA1 CAD Model

Description

The 564684-AS3682-EA1 is a LED driver integrated circuit designed for power management applications.

  • Category: Integrated Circuits (ICs), Power Management (PMIC)
  • Packaging: Tape and Reel
  • Package Quantity: 6,000 pcs
  • Outputs: 6
  • Frequency: 1MHz
  • Voltage Output: 5.3V
  • Flash Channel Current Output: 400mA
  • Switch: Internal
  • Topology: Switched Capacitor
  • Supply Voltage: 3V to 5.5V
  • Operating Temperature: -30°C to 85°C
  • Status: Obsolete
  • Manufacturer: OSRAM Opto Semiconductors Inc.
