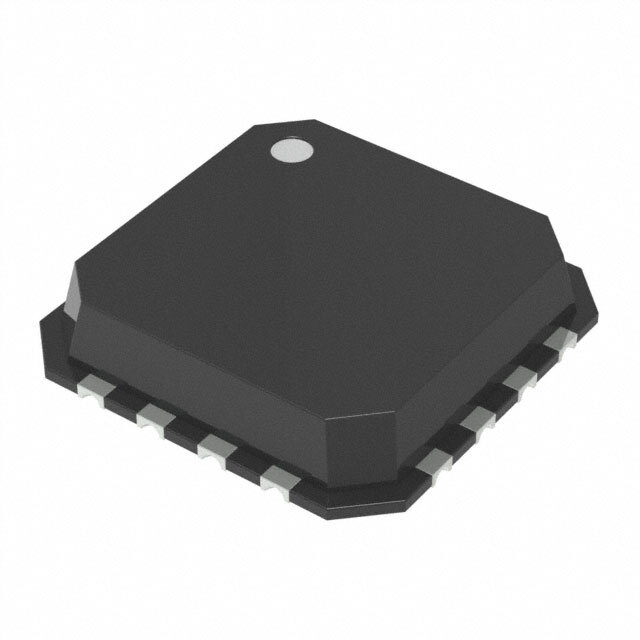

AS5270B-HMFM OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

AS5270B-HMFM

Part No AS5270B-HMFM
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ANGLE SURFACE MOUNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Position Sensors - Angle, Linear Position Measuring
Mfr ams-OSRAM USA INC.
Series -
Package Tape & Reel
Product Status Active
For Measuring Angle
Technology Hall Effect
Linear Range -
Output PWM
Output Signal Clockwise Increase
Actuator Type External Magnet, Not Included
Linearity -
Resistance Tolerance -
Voltage - Supply 4.5V ~ 5.5V
Mounting Type Surface Mount
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 150°C
Package / Case 16-VQFN Exposed Pad
Supplier Device Package 16-MLF (6x6)
Base Product Number AS5270
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1375650-AS5270B-HMFM
Ultra Librarian 3D Model Ultra Librarian AS5270B-HMFM CAD Model

Description

The AS5270B-HMFM is a position sensor manufactured by ams-OSRAM USA INC.

  • Category: Angle, Linear Position Measuring
  • Package / Case: 16-VQFN Exposed Pad
  • Operating Temperature: -40°C ~ 150°C
  • Mounting Type: Surface Mount
  • Voltage - Supply: 4.5V ~ 5.5V
  • Technology: Hall Effect
  • Output Type: PWM
  • For Measuring: Angle
  • Requires Magnet: External, Not Included
  • Status: Active
  • ECCN: EAR99
