Same model may have multiple batches, images only for reference.

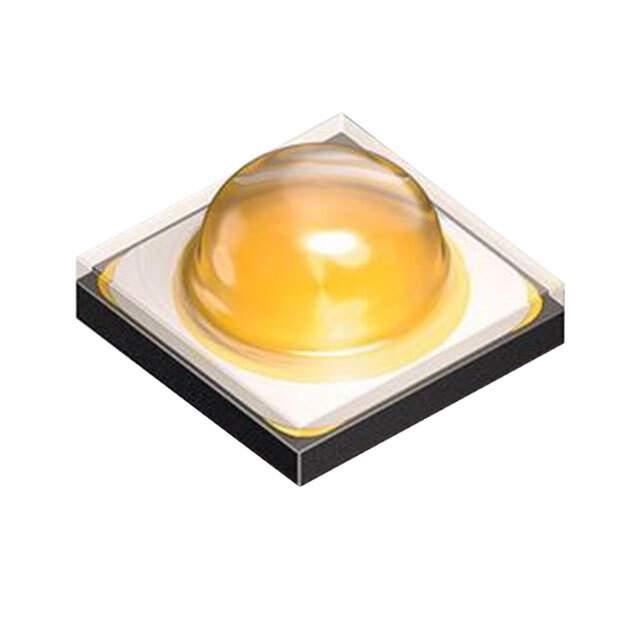

GW CSSRM1.EC-MQMS-5J7K-1 Real Image
Same model may have multiple batches, images only for reference.

GW CSSRM1.EC-MQMS-5J7K-1

Part No GW CSSRM1.EC-MQMS-5J7K-1
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description LED OSLON NEU WHITE 4500K 2SMD
Datasheet
GW CSSRM1.EC-MQMS-5J7K-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer OSRAM Opto Semiconductors Inc.
Series OSLON Square
Packaging Reel package
Part Status Obsolete(EOL)
Color White, Neutral
CCT (K) 4500K
Flux @ 85°C, Current - Test 217 lm (194 lm ~ 240 lm)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt @ Current - Test 107 lm/W
CRI (Color Rendering Index) 80
Current - Max 1.8A
Viewing Angle 120°
Mounting SMD
Package 1212 (3030 Metric)
Manufacturer Package SMD
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Maximum) 0.077" (1.95mm)
Thermal Resistance of Package 3°C/W
Win Source Part Number 766776-GW CSSRM1.EC-MQMS-5J7K-1
Popularity Medium
Supply and Demand Status Limited
Quantity per package 600
Ultra Librarian 3D Model Ultra Librarian GW CSSRM1.EC-MQMS-5J7K-1 CAD Model

Description

The OSRAM Opto Semiconductors Inc. GW CSSRM1.EC-MQMS-5J7K-1 is an SMD LED that is part of the OSLON Square series.

  • Viewing Angle: 120°
  • Thermal Resistance (Package): 3°C/W
  • Maximum Current: 1.8A
  • Forward Voltage: 2.9V (typical)
