Same model may have multiple batches, images only for reference.

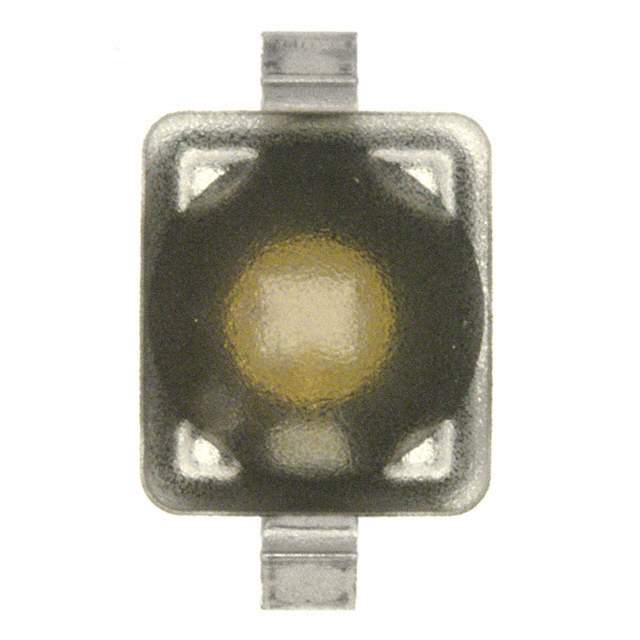

LDW5AP-3V8A-35 Real Image
Same model may have multiple batches, images only for reference.

LDW5AP-3V8A-35

Part No LDW5AP-3V8A-35
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description Power LED; LED Color: Blue; Viewing Angle: 140°; Forward Current: 2A; Forward Voltage: 4.3V; Color: Deep Blue;...
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color Blue
Depth 7.1 mm
Dominant Wavelength 455 nm
Forward Current 2 A
Forward Voltage 4.3 V
Length 8.1 mm
Lens Style Circular, Colorless, Diffused
Maximum Operating Temperature 150 °C
Max Power Dissipation 10 W
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Peak Wavelength 449 nm
Power Dissipation 10 W
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Test Current 1.4 A
Viewing Angle 140 °
Wavelength 461 nm
Win Source Part Number 996081-LDW5AP-3V8A-35
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LDW5AP-3V8A-35 CAD Model

Description

The OSRAM Opto Semiconductors Inc. 996081-LDW5AP-3V8A-35 is a blue LED light pipe with SMD/SMT termination.

  • Color: Blue
  • Termination: SMD/SMT
  • Length: 8.1mm
  • Mounting: SMD (SMT)
  • Forward Voltage: 4.3V
  • Power Dissipation: 10W
  • Peak Wavelength: 449nm
  • Forward Current: 2A
  • Viewing Angle: 140 degrees
  • Number of Pins: 2
  • Wavelength: 461nm
  • Lens Style: Circular, colorless, and diffused
  • Maximum Operating Temperature: 150 degrees Celsius
  • Minimum Operating Temperature: -40 degrees Celsius
  • RoHS: Compliant
