Same model may have multiple batches, images only for reference.

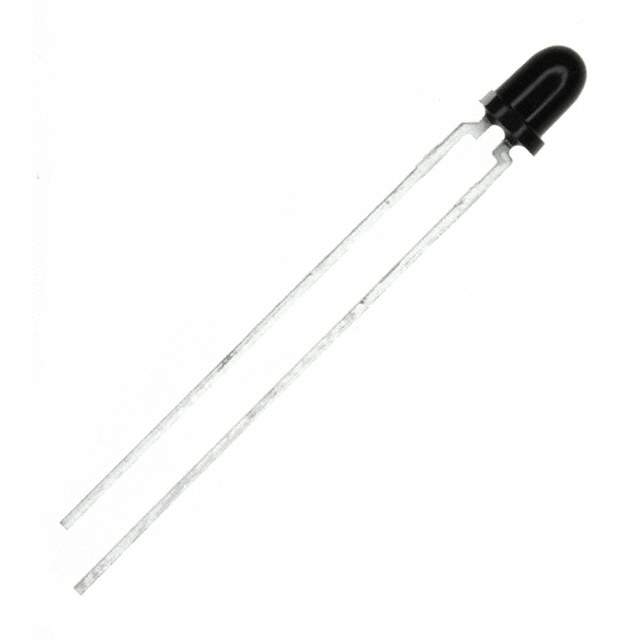

SFH 309 FA-4/5 Real Image
Same model may have multiple batches, images only for reference.

SFH 309 FA-4/5

Part No SFH 309 FA-4/5
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 900NM TOP VIEW RAD / Phototransistors 900nm Top View Radial, T-1 Lens
Datasheet
SFH 309 FA-4/5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr ams-OSRAM USA Inc.
Package Bulk
Voltage - Collector Emitter Breakdown (Max) 35 V
Current - Collector (Ic) (Max) 15 mA
Current - Dark (Id) (Max) 200 nA
Wavelength 900nm
Viewing Angle 24°
Power - Max 165 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Package / Case Radial, T-1 Lens
Base Product Number SFH 309
Other Names SFH 309 FA-4/5,SFH309FA45,Q62702P3591,475-1440
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 1234963-SFH 309 FA-4/5
Ultra Librarian 3D Model Ultra Librarian SFH 309 FA-4/5 CAD Model

Description

The SFH 309 FA-4/5 is an optical sensor phototransistor manufactured by ams-OSRAM USA Inc.

  • Win Source Part Number: 1234963-SFH 309 FA-4/5
  • Package: Bulk
  • Orientation: Top View
  • Standard Package: 2,000
  • Power - Max: 165 mW
  • Voltage - Collector Emitter Breakdown (Max): 35 V
  • Current - Collector (Ic) (Max): 15 mA
  • Viewing Angle: 24°
  • Wavelength: 900nm
  • Current - Dark (Id) (Max): 200 nA
  • Mounting: Through hole technology
  • Package: Radial, T-1 lens
  • Temperature Range: -40°C ~ 100°C (TA)
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.49.7080
