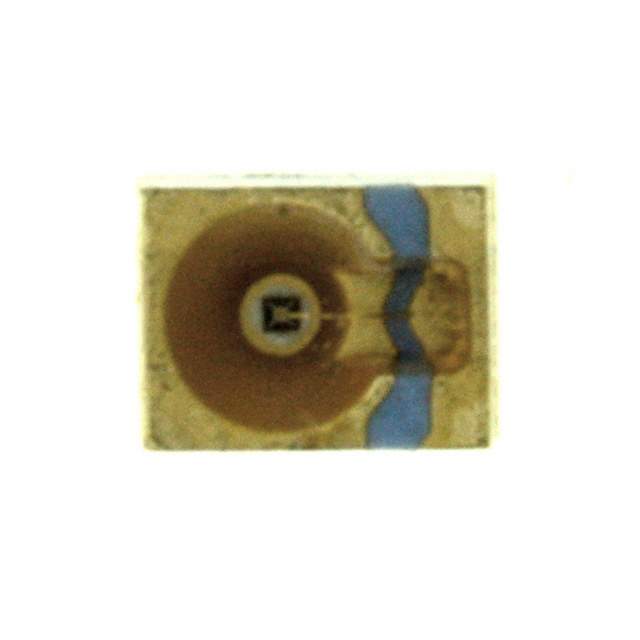

SFH 4685-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 4685-Z

Part No SFH 4685-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 880NM 100MA SMD / Infrared (IR) Emitter 880nm 1.5V 100mA 10mW/sr @ 100mA 40° 2-SMD, No Lead
Datasheet
SFH 4685-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Package Cut Tape (CT),
Product Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 10mW/sr @ 100mA
Wavelength 880nm
Voltage - Forward (Vf) (Typ) 1.5V
Viewing Angle 40°
Orientation Side View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Other Names 475-1464-2,475-1464,475-1464-1,SFH 4685-Z,Q65110A1571,475-1464-6,475-1464,SFH4685Z
Standard Package 2,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242454-SFH 4685-Z
Ultra Librarian 3D Model Ultra Librarian SFH 4685-Z CAD Model

Description

The SFH 4685-Z is an obsolete electronic component that is manufactured by ams-OSRAM USA Inc.

  • Category: Optoelectronics>LED Emitters - Infrared, UV, Visible
  • Viewing Angle: 40 degrees
  • Wavelength: 880nm
  • Contact: For more information about this product, please contact the manufacturer
