Same model may have multiple batches, images only for reference.

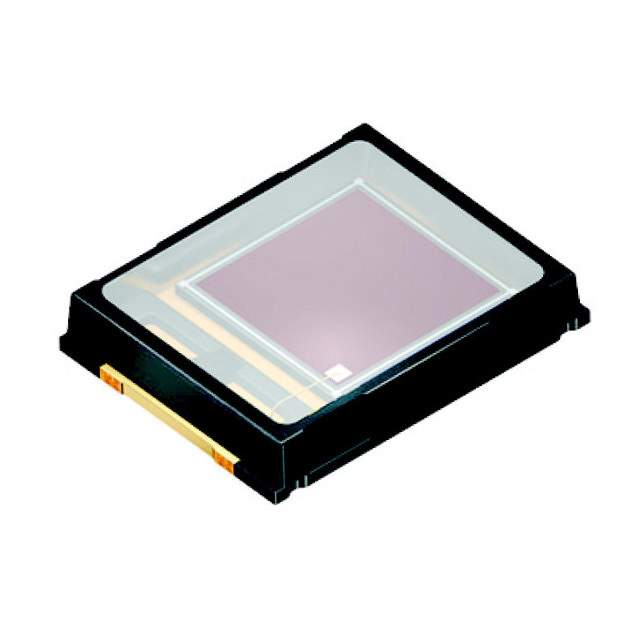

SFH 2240 Real Image
Same model may have multiple batches, images only for reference.

SFH 2240

Part No SFH 2240
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 620NM 2SMD / Photodiode 620nm 90ns 120° 2-SMD, No Lead
Datasheet
SFH 2240 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photodiodes
Mfr ams-OSRAM USA Inc.
Series Power TOPLED®
Package Tape & Reel
Wavelength 620nm
Spectral Range 400nm ~ 690nm
Diode Type PIN
Responsivity @ nm 0.37 A/W @ 620nm
Response Time 90ns
Voltage - DC Reverse (Vr) (Max) 16 V
Current - Dark (Typ) 1nA
Active Area 7.02mm2
Viewing Angle 120°
Temperature Range - Operating -40°C ~ 100°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Other Names SFH 2240-ND,475-3520-1,Q65112A0060,475-3520-6,475-3520-2
Standard Package 1,500
Win Source Part Number 972978-SFH 2240
Ultra Librarian 3D Model Ultra Librarian SFH 2240 CAD Model

Description

The SFH 2240 electronic component with Win Source Part Number 972978-SFH 2240 is a sensor transducer that belongs to the Power TOPLED series. SFH 2240 is a sensor transducer from the Power TOPLED series.

  • Win Source Part Number: 972978-SFH 2240
  • Viewing Angle: 120 degrees
  • Response Time: 90ns
  • Current in Dark: 1nA
  • Responsivity @ nm: 0.37 A/W @ 620nm
  • Diode Type: PIN
  • Voltage - DC Reverse (Vr) (Max): 16 V
  • Package / Case: 2-SMD, No Lead
  • Temperature Range - Operating: -40 degrees Celsius to 100 degrees Celsius
