Same model may have multiple batches, images only for reference.

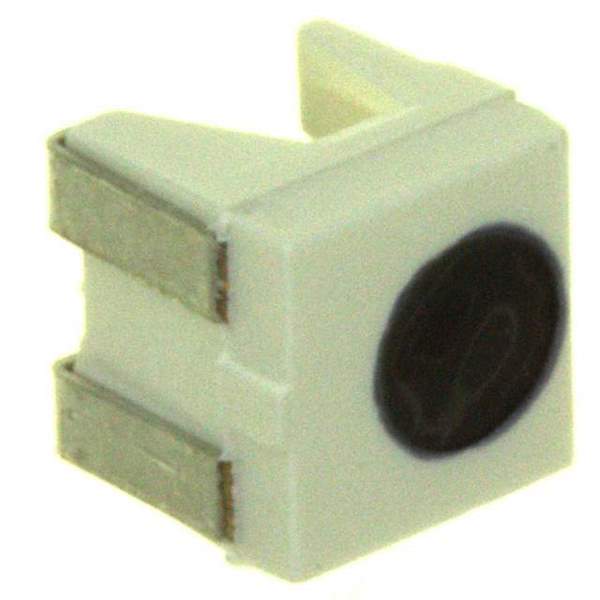

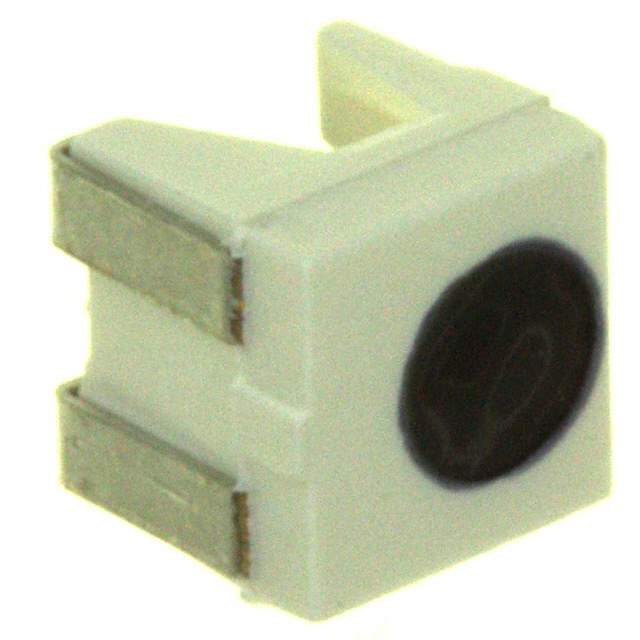

SFH 325 FA-3/4-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 325 FA-3/4-Z

Part No SFH 325 FA-3/4-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 980NM SIDE VIEW SMD / Phototransistors 980nm Side View 2-SMD, Boomerang
Datasheet
SFH 325 FA-3/4-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr ams-OSRAM USA Inc.
Series SIDELED
Package Tape & Reel
Voltage - Collector Emitter Breakdown (Max) 35 V
Current - Collector (Ic) (Max) 15 mA
Current - Dark (Id) (Max) 50 nA
Wavelength 980nm
Viewing Angle 120°
Power - Max 165 mW
Mounting Type Surface Mount, Right Angle
Orientation Side View
Temperature Range - Operating -40°C ~ 100°C (TA)
Package / Case 2-SMD, Boomerang
Base Product Number SFH 325
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Other Names 475-1450-ND,SFH325FA34Z,475-1450-6,SFH325FA-3/4,SFH325FA3/4,475-1450,SFH 325 FA-3/4-Z-ND,SFH325FA-3/4-Z,SFH 325 FA-3/4,SFH325FA3/4Z,475-1450-1,475-1450-2,Q65110A2490
Standard Package 2,000
Win Source Part Number 1210152-SFH 325 FA-3/4-Z
Ultra Librarian 3D Model Ultra Librarian SFH 325 FA-3/4-Z CAD Model

Description

The SFH 325 FA-3/4-Z is a phototransistor optical sensor from the SIDELED series.

  • Viewing Angle: 120 degrees
  • Wavelength: 980nm
  • Maximum Power: 165mW
  • Maximum Collector Current: 15mA
  • Voltage Collector-Emitter Breakdown: 35V
  • Dark Current: 50nA
  • Package: Surface mount, right angle, and 2-SMD boomerang
  • Temperature Range: -40°C to 100°C (TA)
  • REACH: Unaffected
