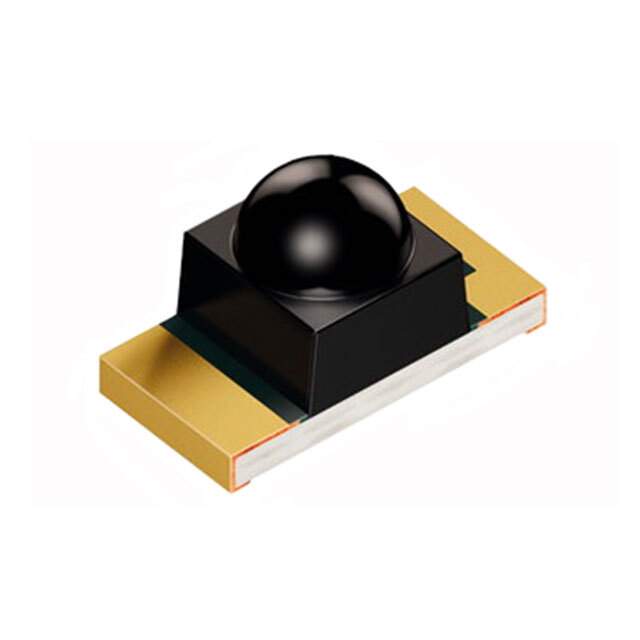

SFH 4059-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 4059-Z

Part No SFH 4059-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 850NM 70MA 1206 / Infrared (IR) Emitter 850nm 1.6V 70mA 40mW/sr @ 70mA 20° 1206 (3216 Metric)
Datasheet
SFH 4059-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Package Cut Tape (CT),
Product Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Max) 70mA
Radiant Intensity (Ie) Min @ If 40mW/sr @ 70mA
Wavelength 850nm
Voltage - Forward (Vf) (Typ) 1.6V
Viewing Angle 20°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names SFH4059Z,SFH 4059-Z-ND,Q65111A0020,475-2948-2,475-2948-1,475-2948-6
Standard Package 2,000
Win Source Part Number 1184060-SFH 4059-Z
Ultra Librarian 3D Model Ultra Librarian SFH 4059-Z CAD Model

Description

The OSRAM Opto Semiconductors Inc. SFH 4059-Z is an optoelectronic LED emitter for infrared, UV and visible light. The product has a cut tape package with a top view orientation and a standard package of 2000. It has a viewing angle of 20 degrees and a radiant intensity of 40mW/sr @ 70mA. The forward voltage of the product is 1.6V and the wavelength is 850nm. It is a 1206 (3216 Metric) package/case and is ECCN EAR99.
