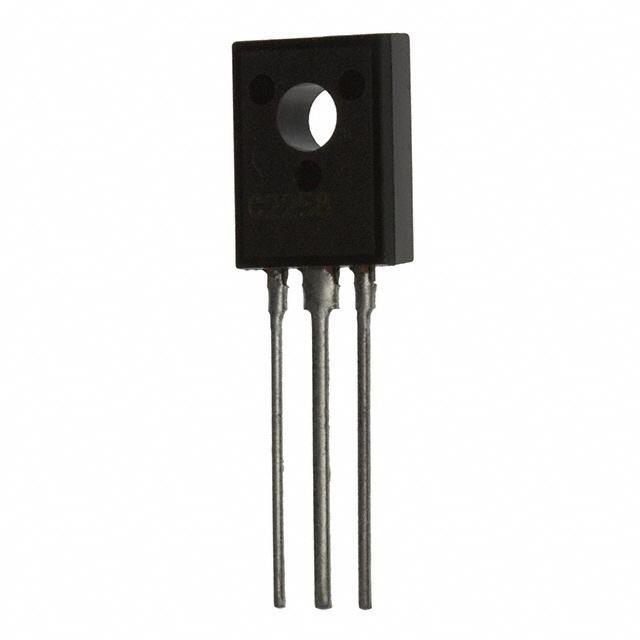

Same model may have multiple batches, images only for reference.
2SA0794AR Panasonic
Same model may have multiple batches, images only for reference.

2SA0794AR

Part No 2SA0794AR
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 120V 0.5A TO-126
Datasheet
2SA0794AR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type PNP
Current - Collector (Ic) (Maximum) 500mA
Voltage - Collector Emitter Breakdown (Maximum) 120V
Vce Saturation (Maximum) @ Ib, Ic 400mV @ 50mA, 500mA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 130 @ 150mA, 10V
Power - Max 1.2W
Frequency - Transition 120MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-225AA, TO-126-3
Manufacturer Package TO-126
Win Source Part Number 762438-2SA0794AR
Popularity Medium
Supply and Demand Status Limited
Family Name 61058
Introduction Date June 18, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SA0794AR CAD Model

Description

The 762438-2SA0794AR is a PNP transistor manufactured by Panasonic Electronic Components.

  • Win Source Part Number: Yes
  • Discrete Semiconductor Products: Yes
  • Mounting Style: Through-hole
  • Operating Temperature Range: 150°C (TJ)
  • Package: TO-225AA, TO-126-3
  • Maximum Power: 1.2W
  • Frequency Transition: 120MHz
  • Obsolete (EOL): Yes
  • Family Name: 61058
  • Current Collector (Ic) (maximum): 500mA
  • Voltage Collector Emitter Breakdown (maximum): 120V
  • Vce Saturation (maximum) @ Ib, Ic: 400mV @ 50mA, 500mA
  • DC Current Gain (hFE) (minimum) @ Ic, Vce: 130 @ 150mA, 10V
  • Introduction Date: June 18, 2001
  • Estimated EOL Date: Obsolete
  • Limited Supply and Demand Status: Yes
