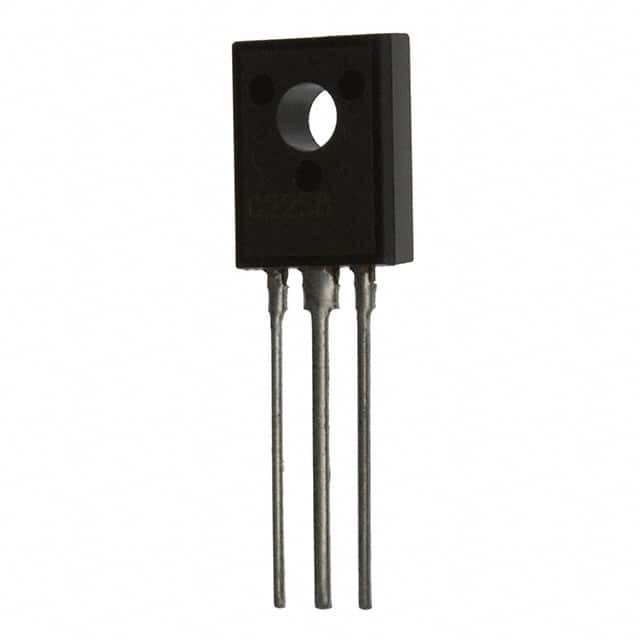

Same model may have multiple batches, images only for reference.
2SA0963 Panasonic
Same model may have multiple batches, images only for reference.

2SA0963

Part No 2SA0963
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr Panasonic Electronic Components
Package Bulk
Product Status Obsolete
Transistor Type PNP
Current - Collector (Ic) (Max) 1.5 A
Voltage - Collector Emitter Breakdown (Max) 40 V
Vce Saturation (Max) @ Ib, Ic 1V @ 150mA, 1.5A
Current - Collector Cutoff (Max) 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce 80 @ 1A, 5V
Power - Max 10 W
Frequency - Transition 150MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-225AA, TO-126-3
Supplier Device Package TO-126A-A1
Base Product Number 2SA096
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0075
Win Source Part Number 1315069-2SA0963
Ultra Librarian 3D Model Ultra Librarian 2SA0963 CAD Model

Description

The 2SA0963 is a PNP bipolar transistor from Panasonic Electronic Components.

  • Maximum Power: 10 W
  • Maximum Collector-Emitter Voltage: 40 V
  • Maximum Collector Current: 1.5 A
  • DC Current Gain: 80 @ 1A and 5V
  • Frequency Transition: 150 MHz
  • Mounting: through hole in the TO-225AA and TO-126-3 package/case
  • Operating Temperature (TJ): up to 150°C
  • ECCN: EAR99
  • RoHS Compliant: No
