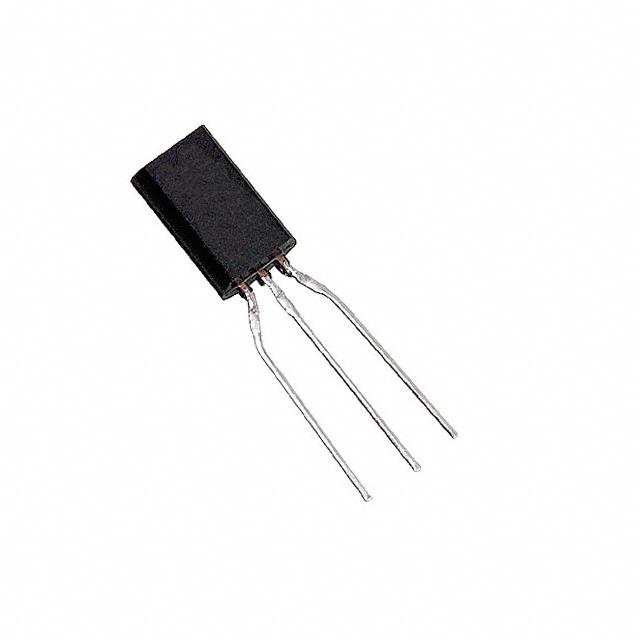

Same model may have multiple batches, images only for reference.
2SA11240R Panasonic
Same model may have multiple batches, images only for reference.

2SA11240R

Part No 2SA11240R
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 150V 0.05A TO-92L
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type PNP
Current - Collector (Ic) (Maximum) 50mA
Voltage - Collector Emitter Breakdown (Maximum) 150V
Vce Saturation (Maximum) @ Ib, Ic 1V @ 3mA, 30mA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 130 @ 2mA, 5V
Power - Max 1W
Frequency - Transition 200MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-226-3, TO-92-3 Long Body
Manufacturer Package TO-92
Win Source Part Number 762348-2SA11240R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SA11240R CAD Model

Description

The Panasonic Electronic Components 762348-2SA11240R is a PNP transistor manufactured by Panasonic Electronic Components.

  • Maximum Power Rating: 1W
  • Frequency Transition: 200MHz
  • Maximum Collector-Emitter Breakdown Voltage: 150V
  • Mounting: Through-hole
  • Package: TO-92-3 long body
  • Obsolete: Yes
  • Popularity: Medium
