Same model may have multiple batches, images only for reference.

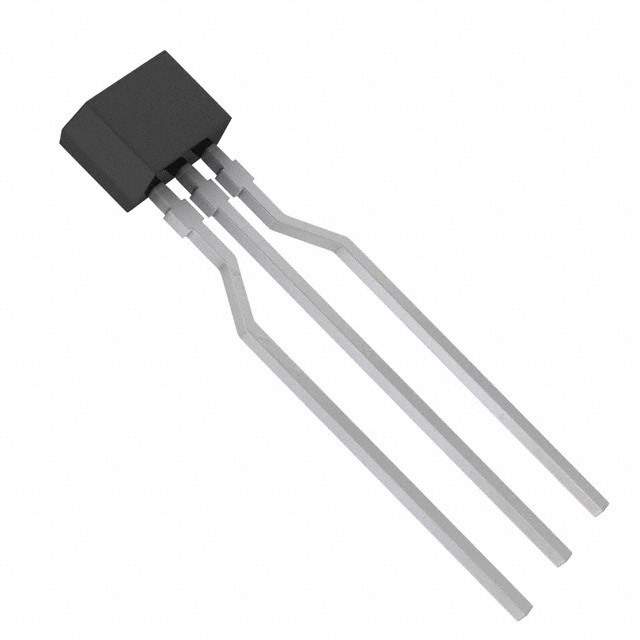

2SA1309ASA Real Image
Same model may have multiple batches, images only for reference.

2SA1309ASA

Part No 2SA1309ASA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 50V 0.1A NS-B1
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Bipolar (BJT) Transistor 50 V 100 mA 300 mW
Manufacturer Panasonic
Package Cut Tape (CT), Tape & Box (TB)
Part Status Obsolete
Family Name 2SA1309
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.21.0095
Other Part Number 2SA1309ASCT-ND, 2SA1309ASACT-NDR, 2SA1309ASCT, 2SA1309ASTB-ND, 2SA1309ASTA, 2SA1309ASTB, 2SA1309ASACT, 2SA1309A-S(TA), 2SA1309ASATB-NDR, 2SA1309ASATB
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 855024-2SA1309ASA
Ultra Librarian 3D Model Ultra Librarian 2SA1309ASA CAD Model

Description

The Panasonic 2SA1309ASA is a bipolar (BJT) transistor that provides a maximum voltage of 50V, maximum current of 100mA, and maximum power of 300mW.

  • Package: Cut Tape (CT) and Tape & Box (TB)
  • Part Status: Obsolete
  • Supply and Demand Status: Limited
  • MSL Level: 1 (unlimited)
  • HTSUS: 8541.21.0095
