Same model may have multiple batches, images only for reference.

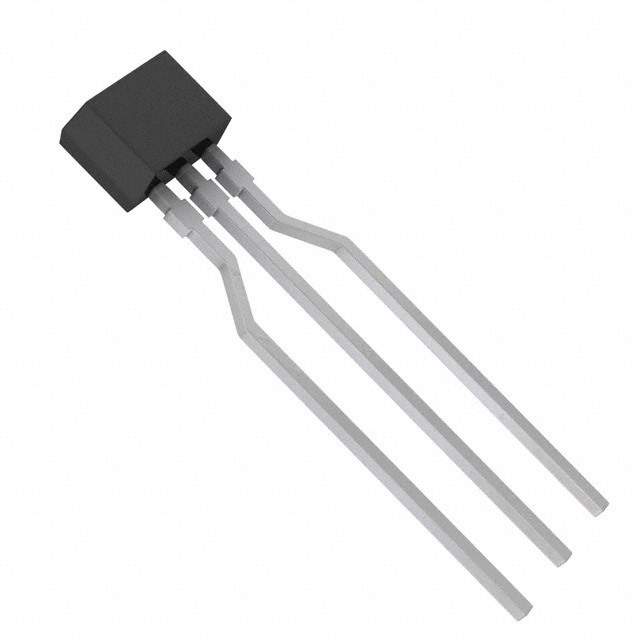

2SB1030ARA Real Image
Same model may have multiple batches, images only for reference.

2SB1030ARA

Part No 2SB1030ARA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 50V 0.5A NS-B1
Datasheet
2SB1030ARA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Transistor Polarity PNP
Maximum Current Collector 500mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Max Vce (sat) 600mV @ 30mA, 300mA
Collector Cut-off Current(Max) 1μA
Typical Gain (hFE) (Min) 120 @ 150mA, 10V
Maximum Power Dissipation 300mW
Frequency - Transition 120MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package NS-B1
Win Source Part Number 1004262-2SB1030ARA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SB1030ARA CAD Model

Description

The Panasonic Electronic Components transistor is a reliable and high-quality component designed for use in discrete semiconductor products.

  • Maximum Collector-Emitter Breakdown Voltage: 50V
  • Maximum Current Collector: 500mA
  • Polarity: PNP
  • Frequency Transition: 120MHz
  • Mounting: through hole
  • Temperature Range: 150 degrees Celsius (TJ)
  • Case/Package: NS-B1
  • Maximum Power Dissipation: 300mW
  • Status: obsolete (EOL)
  • Popularity: medium
  • Package: ammo package
