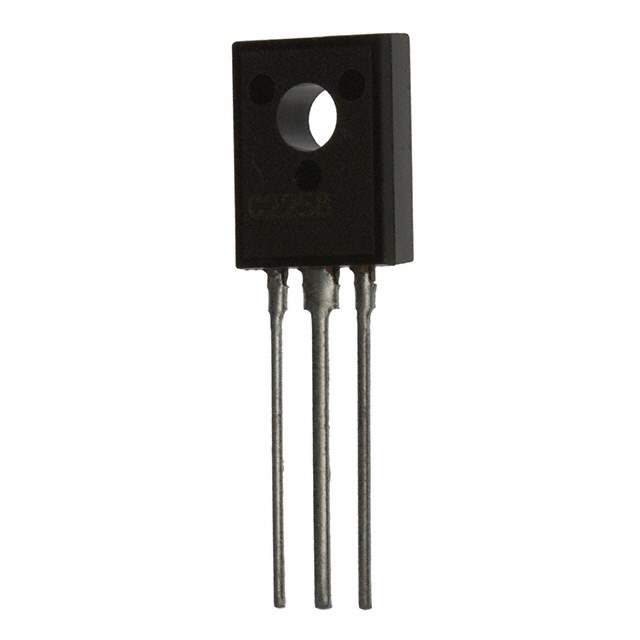

2SD16400Q Real Image
Same model may have multiple batches, images only for reference.

2SD16400Q

Part No 2SD16400Q
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 100V 2A TO-126
Datasheet
2SD16400Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN - Darlington
Current - Collector (Ic) (Maximum) 2A
Voltage - Collector Emitter Breakdown (Maximum) 100V
Vce Saturation (Maximum) @ Ib, Ic 1.5V @ 1mA, 1A
Current - Collector Cutoff (Maximum) 100nA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 4000 @ 1A, 10V
Power - Max 1.2W
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-225AA, TO-126-3
Manufacturer Package TO-126B-A1
Win Source Part Number 762805-2SD16400Q
Popularity Medium
Supply and Demand Status Limited
Family Name 2SD16400Q
Introduction Date December 16, 2000
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SD16400Q CAD Model

Description

The Panasonic Electronic Components 2SD16400Q is a NPN Darlington transistor.

  • Maximum Power: 1.2W
  • Maximum collector-emitter breakdown voltage: 100V
  • Current - collector (Ic) (Maximum): 2A
  • Vce saturation (Maximum) @ Ib, Ic: 1.5V @ 1mA, 1A
  • DC current gain (hFE) (Minimum) @ Ic, Vce: 4000 @ 1A, 10V
  • Package: TO-225AA, TO-126-3
  • Mounting: Through-hole
  • Operating Temperature Range: 150°C (TJ)
