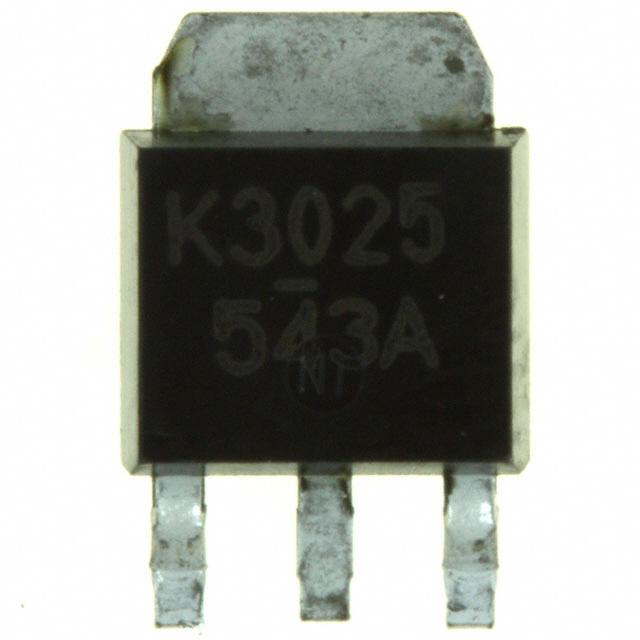

2SK302500L Panasonic
Same model may have multiple batches, images only for reference.

2SK302500L

Part No 2SK302500L
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 60V 30A UG-2
Datasheet
2SK302500L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 30A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V
Gate-Source Threshold Voltage 2.5V @ 1mA
Max Input Capacitance 1200pF @ 10V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 1W (Ta), 25W (Tc)
Maximum Rds On at Id,Vgs 40 mOhm @ 15A, 10V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package U-DL
Dimension U-G2
Win Source Part Number 1004715-2SK302500L
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 2SK302500L CAD Model

Description

The Panasonic Electronic Components 2SK302500L is a N-channel MOSFET with a power dissipation of 1W (Ta) and 25W (Tc).

  • Type: N-channel MOSFET
  • Power Dissipation: 1W (Ta) and 25W (Tc)
  • Drive Voltage (Max Rds On): 4V
  • Drive Voltage (Min Rds On): 10V
  • Drain-Source Breakdown Voltage: 60V
  • Continuous Drain Current: 30A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 2.5V @ 1mA
  • Maximum Input Capacitance: 1200pF @ 10V
  • Mounting Technology: SMD (SMT)
  • Package: U-DL
  • Case/Package Size: U-G2
  • Status: Obsolete (EOL)
  • Operating Temperature Range: 150°C (TJ)
