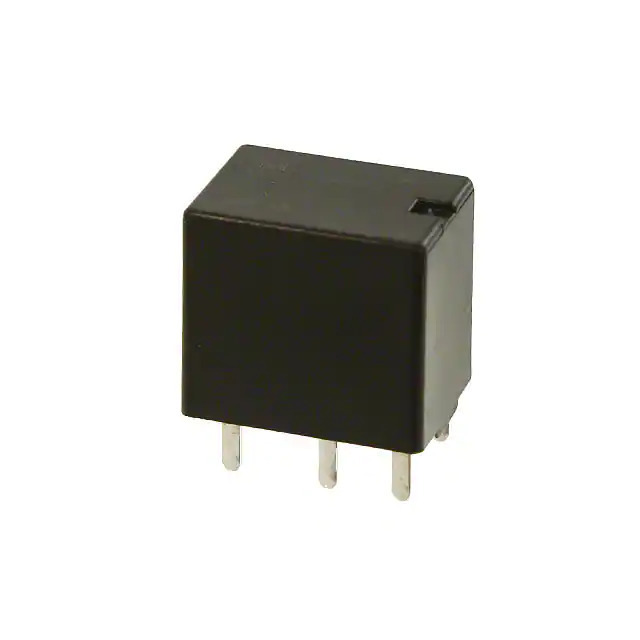

ACNM1112 Panasonic
Same model may have multiple batches, images only for reference.

ACNM1112

Part No ACNM1112
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPDT 30A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic Electric Works
Series ACNM
Package Tube
Product Status Active
Coil Type Non Latching
Coil Current 53.3 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 30 A
Switching Voltage 14VDC - Nom
Must Operate Voltage 7.2 VDC
Must Release Voltage 1 VDC
Operate Time 10 ms
Release Time 10 ms
Features -
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 640mW
Coil Resistance 225 Ohms
Base Product Number ACNM111
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373508-ACNM1112
Ultra Librarian 3D Model Ultra Librarian ACNM1112 CAD Model

Description

The ACNM1112 is an automotive relay from the ACNM series by Panasonic Electric Works.

  • Relay Type: Automotive Relay
  • Mounting Type: Through Hole
  • Contact Form: Single-pole, double-throw (SPDT)
  • Coil Voltage: 12VDC
  • Contact Rating: 30A
  • Switching Voltage: Up to 14VDC
  • Coil Current: 53.3mA
  • Temperature Range: -40°C to 85°C
  • Termination Style: PC Pin
  • Coil Resistance: 225 Ohms
