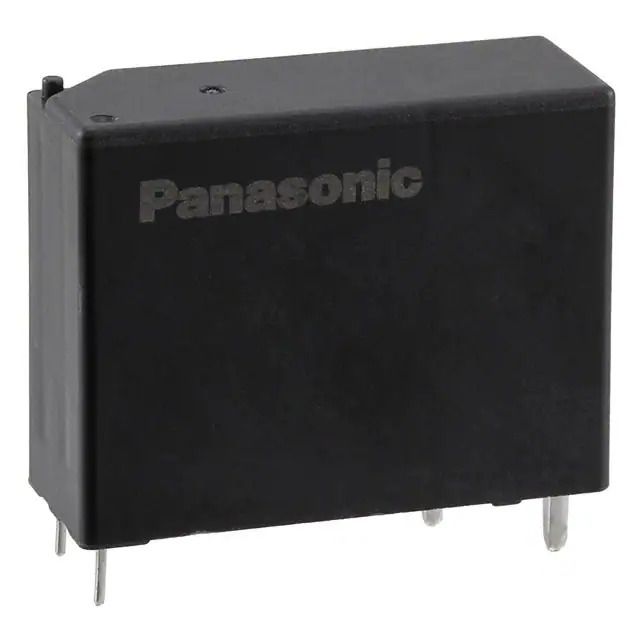

Same model may have multiple batches, images only for reference.
ADJH23012 Panasonic
Same model may have multiple batches, images only for reference.

ADJH23012

Part No ADJH23012
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 50A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ADJH
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 50 A
Switching Voltage 480VAC - Max
Coil Current 167 mA
Coil Type Latching, Dual Coil
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage -
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 72 Ohms
Base Product Number ADJH23
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373438-ADJH23012
Ultra Librarian 3D Model Ultra Librarian ADJH23012 CAD Model

Description

The 1373438-ADJH23012 is an active power relay from Panasonic Electric Works.

  • Relay Type: Power Relay, Over 2 Amps
  • Series: ADJH
  • Coil Voltage: 12VDC
  • Contact Rating: 50A
  • Switching Voltage: 480VAC (Max)
  • Coil Current: 167mA
  • Coil Type: Latching, Dual Coil
  • Seal Rating: Sealed, Flux Protection
  • Coil Insulation Class: F
  • Must Operate Voltage: 9VDC
  • Operate Time: 20ms
  • Release Time: 20ms
  • Relay Function: General Purpose
  • Termination Style: PC Pin
