Same model may have multiple batches, images only for reference.

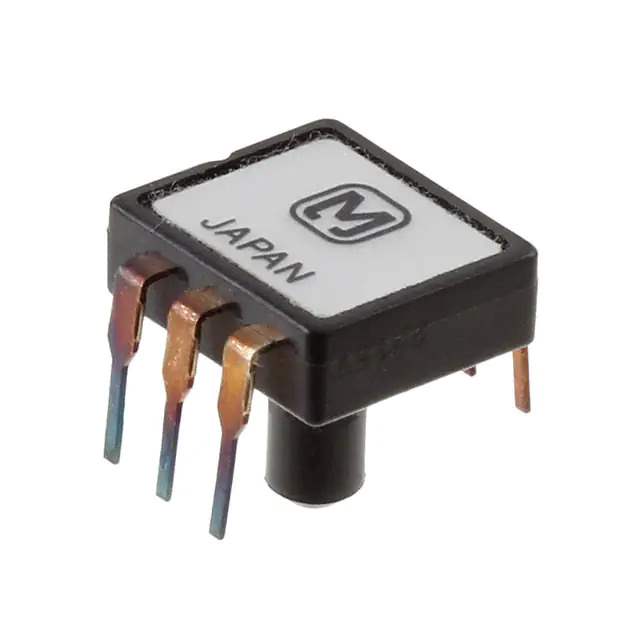

ADP1231 Real Image
Same model may have multiple batches, images only for reference.

ADP1231

Part No ADP1231
Manufacturer Panasonic
Catalog Pressure Sensors, Transducers
Description SENSOR 7.11PSIG 0.12" 0.1V / Pressure Sensor 7.11PSI (49kPa) Vented Gauge Male - 0.12" (3mm) Tube 0 mV ~ 100 mV 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Panasonic
Series PF
Package Box
Product Status Active
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 7.11PSI (49kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.3%
Voltage - Supply 5V
Port Size Male - 0.12" (3mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 14.21PSI (98kPa)
Temperature Range - Operating -20°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP Module
Base Product Number ADP123
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 910604-ADP1231
Ultra Librarian 3D Model Ultra Librarian ADP1231 CAD Model

Description

The Panasonic ADP1231 is a pressure sensor designed for use in various applications.

  • Series: PF series
  • Termination Style: PC pin
  • Temperature Compensation: Temperature compensated
  • Package: Box
  • Standard Package: 100 pcs
  • Output Type: Wheatstone bridge
  • Output Range: 0 mV to 100 mV
  • Accuracy: ±0.3%
  • Supply Voltage: 5V
  • Operating Pressure: 7.11 PSI (49kPa)
  • Maximum Pressure: 14.21 PSI (98kPa)
  • Temperature Range: -20°C to 100°C
