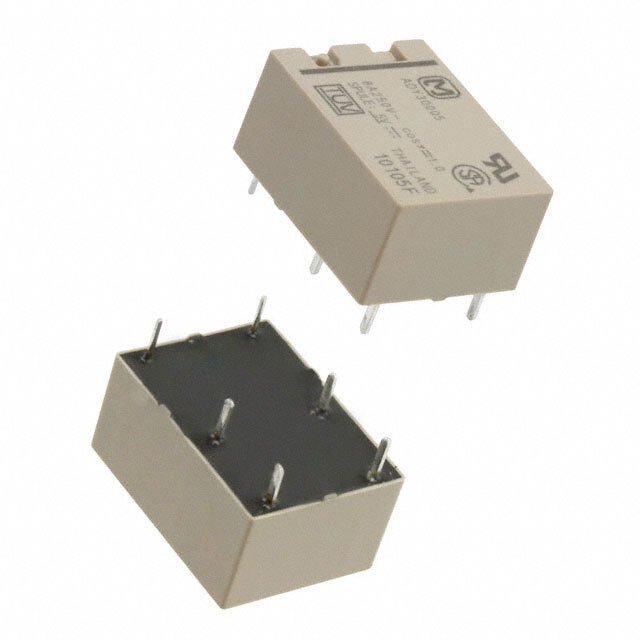

ADY12005 Panasonic
Same model may have multiple batches, images only for reference.

ADY12005

Part No ADY12005
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series ADY
Package Box
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 40 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.5 VDC
Operate Time 10 ms
Release Time 8 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO), Gold (Au)
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number ADY120
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 811647-ADY12005
Ultra Librarian 3D Model Ultra Librarian ADY12005 CAD Model

Description

The ADY12005 is a latching power relay designed for high current applications.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 10 A
  • Coil Voltage: 5VDC
  • Coil Resistance: 125 Ohms
  • Switching Voltage: 250VAC, 125VDC
  • Seal Rating: Sealed, Fully Rated
  • Mounting Type: Through Hole
  • Packaging: Box
  • Series: ADY
