AEP18024 Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

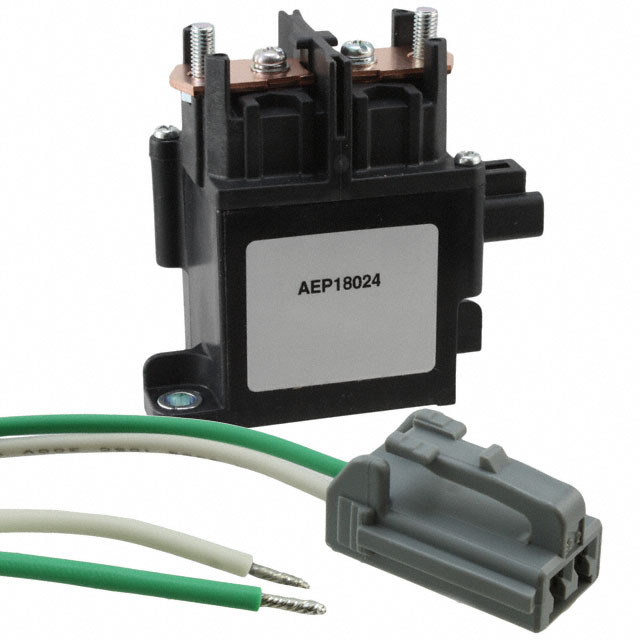

AEP18024

Part No AEP18024
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Panasonic Electric Works
Series AEP
Packaging Bulk
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 80 A
Switching Voltage 277VAC, 400VDC - Nom
Load - Max Switching 22160VA
Coil Current 188 mA
Coil Type Non Latching
Termination Style Stud
Seal Rating Sealed - Hermetically
Must Operate Voltage 18 VDC
Must Release Voltage 1.92 VDC
Operate Time 50 ms
Release Time 30 ms
Temperature Range - Operating -40°C ~ 80°C
Approval Agency cURus
Relay Type General Purpose
Coil Resistance 127.66 Ohms
Base Product Number AEP180
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1477741-AEP18024
Ultra Librarian 3D Model Ultra Librarian AEP18024 CAD Model
