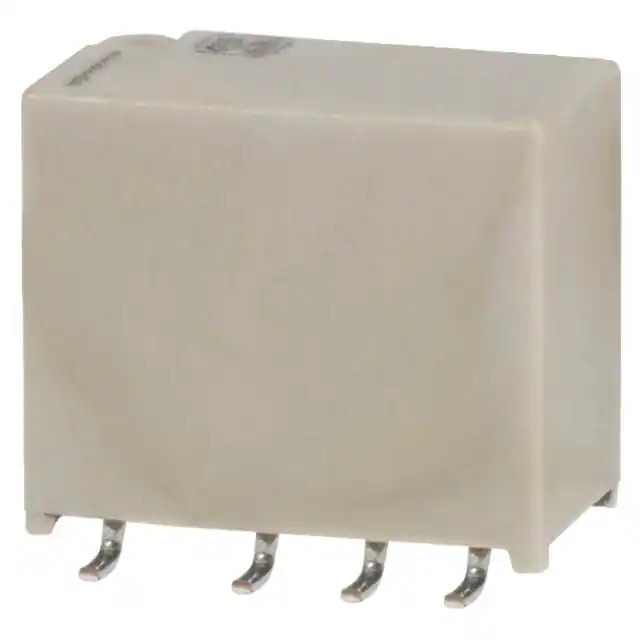

AGN200S24 Panasonic
Same model may have multiple batches, images only for reference.

AGN200S24

Part No AGN200S24
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 1A 24VDC / Telecom Relay DPDT (2 Form C) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic Electric Works
Series AGN
Package Box
Product Status Active
Mounting Type Surface Mount
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 110VDC - Max
Coil Current 9.6 mA
Coil Type Non Latching
Features -
Termination Style Gull Wing
Seal Rating -
Coil Insulation -
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Relay Type Telecom
Coil Resistance 2.5 kOhms
Base Product Number AGN200
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373497-AGN200S24
Ultra Librarian 3D Model Ultra Librarian AGN200S24 CAD Model

Description

The AGN200S24 is a signal relay from the AGN series by Panasonic Electric Works.

  • Relay Type: Signal Relay
  • Series: AGN
  • Coil Voltage: 24VDC
  • Contact Rating: 1A
  • Contact Form: DPDT (2 Form C)
  • Switching Voltage: 125VAC, 110VDC
  • Coil Current: 9.6mA
  • Coil Type: Non-Latching
  • Mounting Type: Surface Mount
  • Application: Telecom
  • Must Operate Voltage: 18VDC
  • Must Release Voltage: 2.4VDC
  • Operate Time: 4ms
  • Release Time: 4ms
  • Coil Resistance: 2.5kOhms
