Same model may have multiple batches, images only for reference.

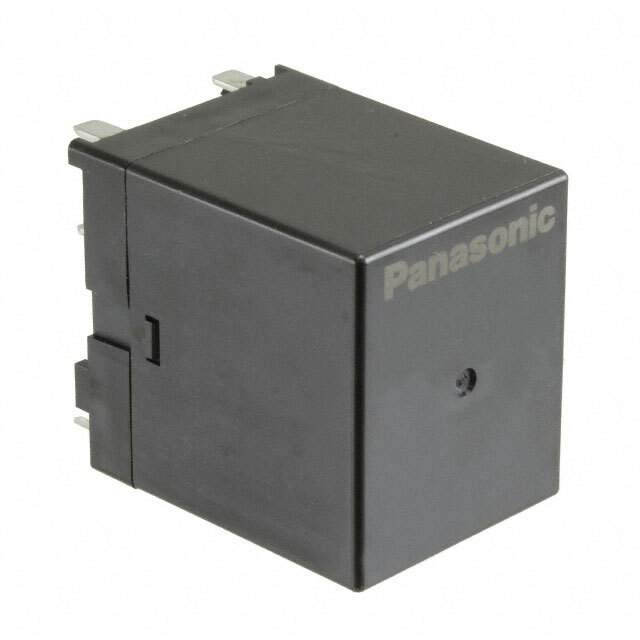

AHES4195 Real Image
Same model may have multiple batches, images only for reference.

AHES4195

Part No AHES4195
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 3PST 35A 9V / General Purpose Relay 3PST-2NO/1NC (2 Form A, 1 Form B) 9VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series HE-S
Package Tray
Mounting Type Through Hole
Coil Voltage 9VDC
Contact Form 3PST-2NO/1NC (2 Form A, 1 Form B)
Contact Rating (Current) 35 A
Switching Voltage 277VAC - Nom
Coil Current 209 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 6.3 VDC
Must Release Voltage 0.45 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 43 Ohms
Base Product Number AHES41
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-5236
Standard Package 25
Win Source Part Number 1090148-AHES4195
Ultra Librarian 3D Model Ultra Librarian AHES4195 CAD Model

Description

The Panasonic AHES4195 is a power relay with a coil voltage of 9VDC.

  • Coil Voltage: 9VDC
  • Contact Form: 3PST-2NO/1NC
  • Contact Material: Silver tin oxide (AgSnO)
  • Coil Resistance: 43 Ohms
  • Coil Current: 209 mA
  • Operate Time: 30 ms
  • Release Time: 10 ms
  • Package: Tray
  • Standard Package: 25
  • Protection: Sealed-flux
  • Switching Voltage: 277VAC - Nom
  • Contact Rating: 35 A
  • Temperature Range: -40°C to 55°C
  • Coil Insulation: Class F
  • Supply and Demand: Balance
