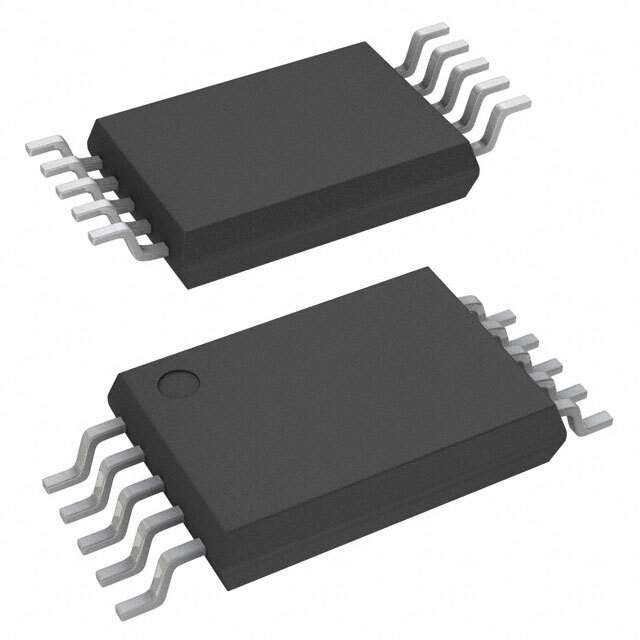

AN8015SH-E1V Real Image
Same model may have multiple batches, images only for reference.

AN8015SH-E1V

Part No AN8015SH-E1V
Manufacturer Panasonic
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK/BOOST 10-SSOP
Datasheet
AN8015SH-E1V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Transistor Driver
Purpose Step-Up, Step-Down
Topology Buck, Boost
Number of Outputs 1
Output Phases 1
Supply Voltage - Operating 3.6 V to 34 V
Frequency - Switching 2kHz to 500kHz
Duty Cycle (Max) 90%
Synchronous Rectifier No
Clock Sync No
Control Features Frequency Control
Temperature Range - Operating -30°C to 85°C (TA)
Case / Package 10-SSOP
Win Source Part Number 1016750-AN8015SH-E1V
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AN8015SH-E1V CAD Model

Description

The Panasonic AN8015SH-E1V is an integrated circuit designed for use in step-up and step-down applications.

  • Manufacturer: Panasonic
  • Product Name: AN8015SH-E1V
  • Application: Step-Up and Step-Down
  • Supply Voltage Range: 3.6V to 34V
  • Output Type: Transistor Driver
  • Topology: Buck and Boost
  • Frequency Switching: 2kHz to 500kHz
  • Duty Cycle: Up to 90%
  • Output Phase: One
  • Synchronous Rectifier: No
  • Mounting Type: 10-SSOP
  • Applications: Power supplies, motor control, and lighting
