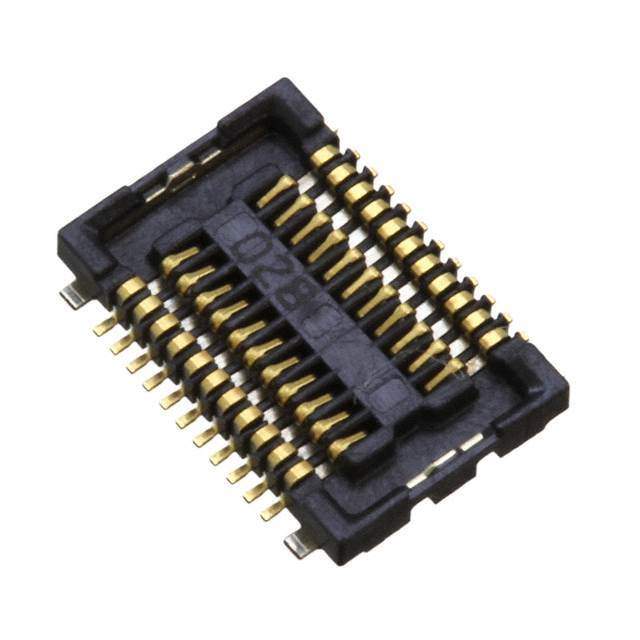

AXK7L22223G Real Image
Same model may have multiple batches, images only for reference.

AXK7L22223G

Part No AXK7L22223G
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 22POS SMD GOLD / 22 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Datasheet
AXK7L22223G Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Product Status Obsolete
Connector Type Socket, Center Strip Contacts
Number of Positions 22
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.034" (0.86mm)
Base Product Number AXK7L22
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 255-3149-2,255-3149-1
Standard Package 1,000
Win Source Part Number 1332417-AXK7L22223G
Ultra Librarian 3D Model Ultra Librarian AXK7L22223G CAD Model

Description

The Panasonic AXK7L22223G is a rectangular connector that is designed to be used in arrays, edge type, mezzanine (board to board).

  • Application: Arrays, Edge Type, Mezzanine (Board to Board)
  • Pitch: 0.016" (0.40mm)
  • Feature: Solder Retention
  • Connector Type: Socket, Center Strip Contacts
  • Number of Rows: 2
  • Contact Finish: Gold
  • Mated Stacking Heights: 0.9mm
  • Height Above Board: 0.034" (0.86mm)
  • Standard Package: 1,000
