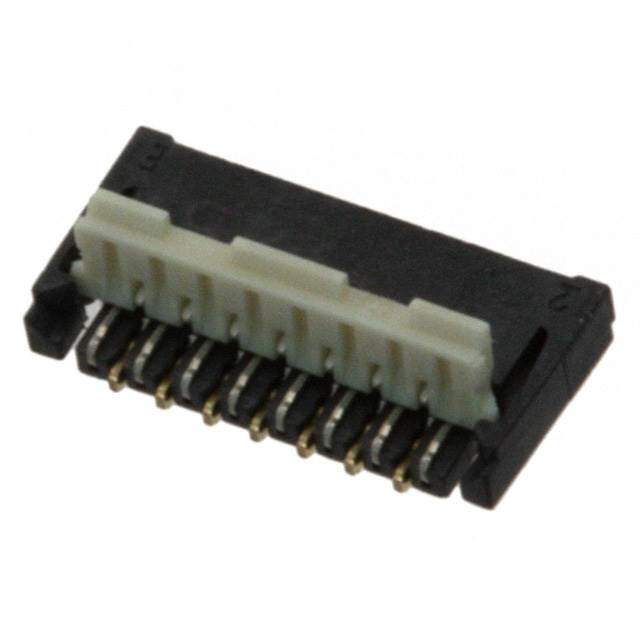

AYF331535 Real Image
Same model may have multiple batches, images only for reference.

AYF331535

Part No AYF331535
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 15POS 0.30MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 15
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.036" (0.90mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A per Contact
Contact Finish Thickness Flash
Mating Cycles 20
Win Source Part Number 1021151-AYF331535
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AYF331535 CAD Model

Description

The Panasonic Electric Works AYF331535 is a 15-position FPC connector that features a flip lock and backlock for secure cable retention.

  • Manufacturer: Panasonic Electric Works
  • Positions: 15
  • Type: FPC Connector
  • Features: Flip Lock, Backlock
  • Pitch: 0.012” (0.30mm)
  • Height Above Board: 0.036” (0.90mm)
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Actuator Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 50V
  • Current Rating: 0.2A per Contact
  • Operating Temperature: -55°C to 85°C
  • Mating Cycle: 20 times
  • Mounting: Surface Mount
  • Mounting Option: Right-Angle
  • FFC, FCB Thickness: 0.20mm
  • Cable End Type: Tapered
  • Category: Interconnects and Connectors
