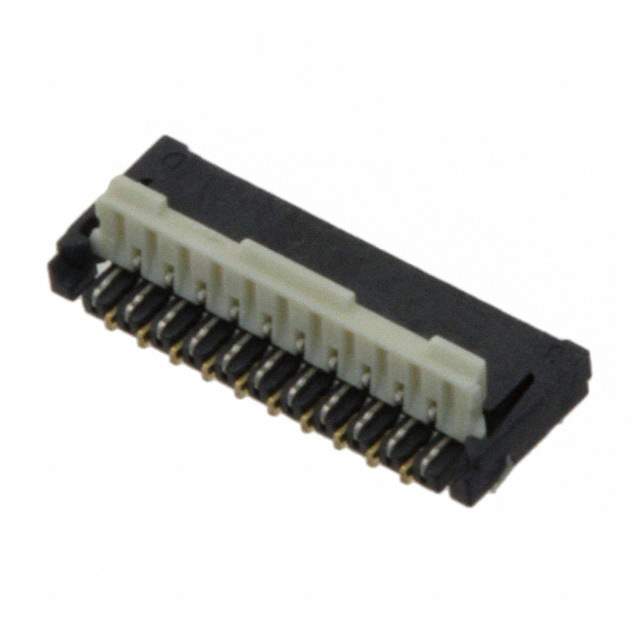

Same model may have multiple batches, images only for reference.

AYF332135

Name: AYF332135
Brand: Panasonic
SKU: 435811
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AYF332135
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 21POS 0.30MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Panasonic Electric Works
Packaging	Reel - TR
Status	Active
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	21
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.036" (0.90mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.2A per Contact
Contact Finish Thickness	Flash
Mating Cycles	20
Win Source Part Number	1021152-AYF332135
Popularity	Medium
Supply and Demand Status	Sufficient
Quantity per package	1k pcs
Ultra Librarian 3D Model	Ultra Librarian AYF332135 CAD Model

Alternative Products

Description

The Panasonic Electric Works connector is a reliable and high-performance FPC connector with a flip lock and backlock feature.

Positions: 21
Pitch: 0.012 inches
Voltage Rating: 50V
Current Rating: 0.2A per contact
Housing Material: Liquid Crystal Polymer (LCP)
Actuator Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Height Above Board: 0.036 inches
Mating Cycle: 20
Temperature Range: -55°C to 85°C
Packaging: Reel - TR
Cable End Type: Tapered
