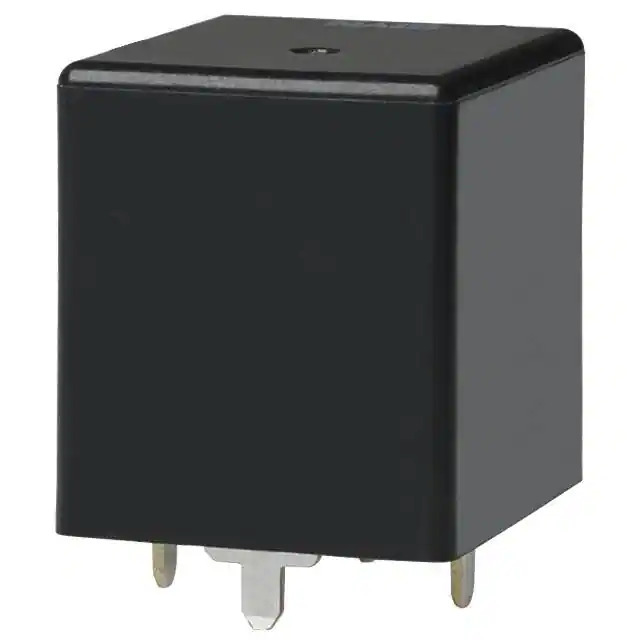

CB1-P-12V Panasonic
Same model may have multiple batches, images only for reference.

CB1-P-12V

Part No CB1-P-12V
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPDT 40A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic Electric Works
Series CB
Package Bulk
Product Status Active
Coil Type Non Latching
Coil Current 117 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 40 A
Switching Voltage 14VDC - Nom
Must Operate Voltage 7 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 15 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 1.4W
Coil Resistance 103 Ohms
Base Product Number CB1-P
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373509-CB1-P-12V
Ultra Librarian 3D Model Ultra Librarian CB1-P-12V CAD Model

Description

The CB1-P-12V is an automotive relay manufactured by Panasonic Electric Works.

  • Relay Type: Automotive Relay
  • Series: CB
  • Mounting Type: Through Hole
  • Coil Voltage: 12VDC
  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 40A
  • Construction: Sealed, fully sealed
  • Must Operate Voltage: 7VDC
  • Must Release Voltage: 1.2VDC
  • Operate Time: 15ms
  • Release Time: 15ms
  • Contact Material: Silver alloy, cadmium-free
