Same model may have multiple batches, images only for reference.

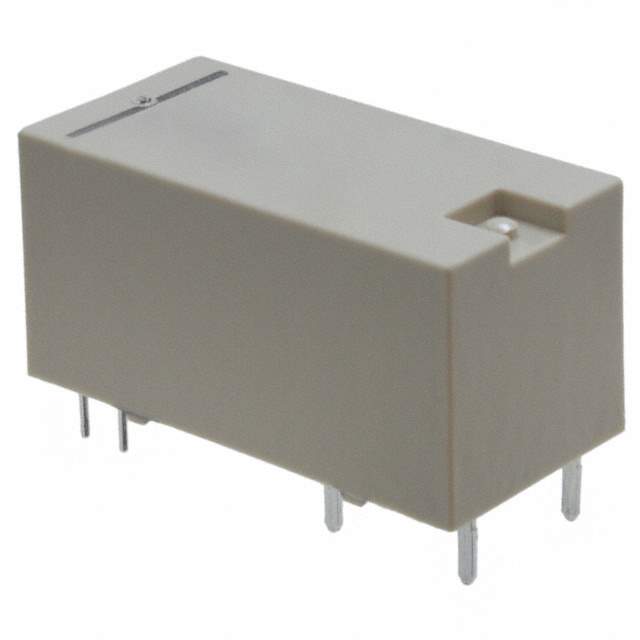

DE1A-L2-5V Real Image
Same model may have multiple batches, images only for reference.

DE1A-L2-5V

Part No DE1A-L2-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DE
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 40 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Must Operate Voltage 3.5 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number DE1A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-4034-5,DE1A-L2-5V-ND,DE1AL25V
Standard Package 20
Win Source Part Number 1164428-DE1A-L2-5V
Ultra Librarian 3D Model Ultra Librarian DE1A-L2-5V CAD Model

Description

The Panasonic Electric Works DE1A-L2-5V is a latching, dual-coil power relay with a contact rating of 10A and a switching voltage of 250VAC and 30VDC.

  • Coil Resistance: 125 ohms
  • Coil Current: 40mA
  • Operate Time: 10ms
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 70°C
  • ECCN: EAR99
