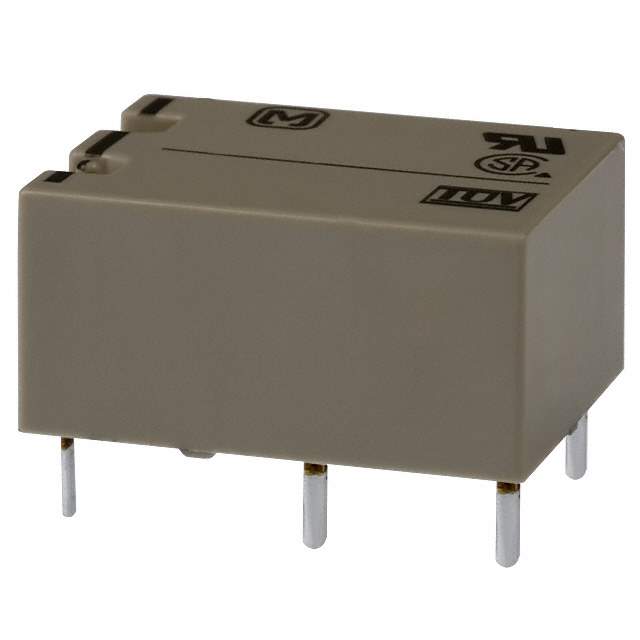

DK2A-L2-24V Real Image
Same model may have multiple batches, images only for reference.

DK2A-L2-24V

Part No DK2A-L2-24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 24V / General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DK
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 8.3 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Operate Time 10 ms
Release Time 8 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number DK2A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names 255-1603,DK2AL224V,255-1603-NDR
Standard Package 50
Win Source Part Number 1196405-DK2A-L2-24V
Ultra Librarian 3D Model Ultra Librarian DK2A-L2-24V CAD Model

Description

The Panasonic DK2A-L2-24V is a latching, dual coil general-purpose relay with a DPST-NO (2 Form A) contact form.

  • Contact Rating: 8A
  • Switching Voltage: 250VAC, 125VDC - Max
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88 kOhms
  • Coil Current: 8.3 mA
  • Must Operate Voltage: 16.8 VDC
  • Release Time: 8 ms
  • Series: DK
  • Package: Tube
  • Standard Package: 50
  • Operating Temperature: -40°C to 65°C
  • ECCN: EAR99
  • HTSUS: 8536.41.0020
