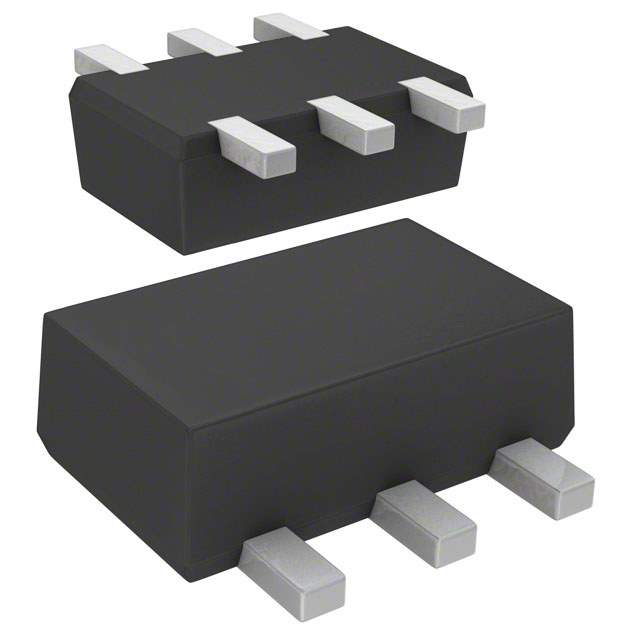

DMC564050R Real Image
Same model may have multiple batches, images only for reference.

DMC564050R

Part No DMC564050R
Manufacturer Panasonic
Catalog Transistors (BJT) - Arrays, Pre - Biased
Description TRANS PREBIAS DUAL NPN SMINI6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased (Dual) 50V 100mA - 150mW Surface Mount SMini6-F3-B
Manufacturer Panasonic
Package Reel - TR
Mounting Surface Mount
Package 6-SMD, Flat Leads
Case / Package SMini6-F3-B
Family Name DMC56405
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.21.0095
Other Part Number DMC564050RTR, DMC564050RDKR, DMC564050RCT, DMC564050R-ND
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868892-DMC564050R
Ultra Librarian 3D Model Ultra Librarian DMC564050R CAD Model

Description

The Panasonic 868892-DMC564050R is a pre-biased bipolar transistor with dual NPN configuration.

  • Maximum Voltage: Up to 50V
  • Maximum Current Rating: 100mA
  • Mounting Type: Surface mountable
  • Package: 6-SMD, flat leads
  • Family: DMC56405
  • Category: Discrete semiconductor products
  • Package: Available in reel-TR
  • Quantity per Package: 3000
  • MSL Level: 1 (unlimited)
  • ECCN: EAR99
  • Supply and Demand Status: Limited
