The DMG5640N0R is a NPN/PNP complementary transistor array manufactured by Panasonic. This device integrates two transistors, one NPN and one PNP, in a single package, pre-biased with built-in resistors. This configuration simplifies circuit design by reducing the number of external components required.

Applications

• Inverter Circuits
• Driver Circuits
• Switching Circuits
• Amplifier Circuits
• Digital Logic Circuits
• Interface Circuits

Features

• Complementary NPN/PNP Transistor Pair
• Built-in Resistors for Base-Emitter and Base Resistors
• Low Input Current
• Small Surface Mount Package (SOT-363)
• Reduces Component Count
• Simplifies Circuit Design

Benefits

• Reduces board space and component count, leading to smaller and more efficient designs.
• Simplifies circuit design by eliminating the need for external biasing resistors.
• Low input current makes it suitable for driving directly from logic gates.
• Improved circuit performance due to matched transistor characteristics.
• Reduces assembly costs and time.

Additional Details

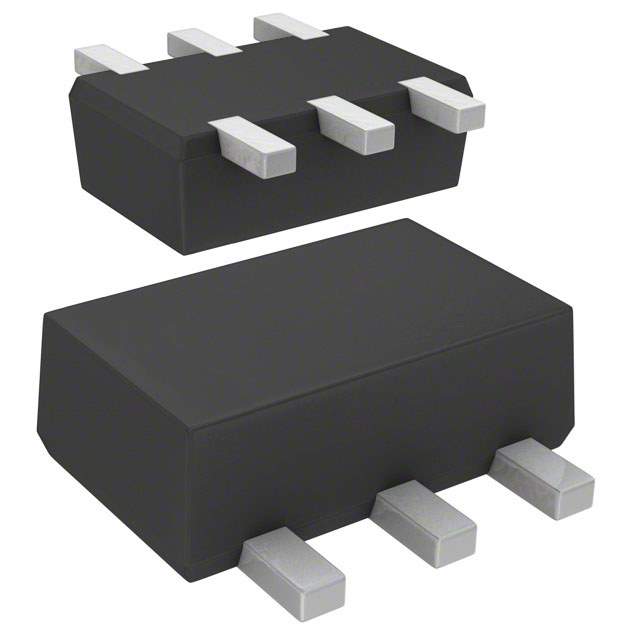

The DMG5640N0R is housed in a small SOT-363 (SC-88) surface mount package. The built-in resistors eliminate the need for external biasing resistors, reducing the number of components required and simplifying board layout. The transistors are designed for low-current applications, making them suitable for interfacing with digital logic circuits.

NPN Transistor Characteristics:

• Collector-Emitter Voltage (VCEO): 50V
• Collector Current (IC): 100mA
• Power Dissipation (PC): 150mW
• Base Resistor (R1): 10kΩ
• Base-Emitter Resistor (R2): 10kΩ

PNP Transistor Characteristics:

• Collector-Emitter Voltage (VCEO): -50V
• Collector Current (IC): -100mA
• Power Dissipation (PC): 150mW
• Base Resistor (R1): 47kΩ
• Base-Emitter Resistor (R2): 47kΩ

This device offers a convenient and space-saving solution for applications requiring both NPN and PNP transistors with integrated biasing resistors.
