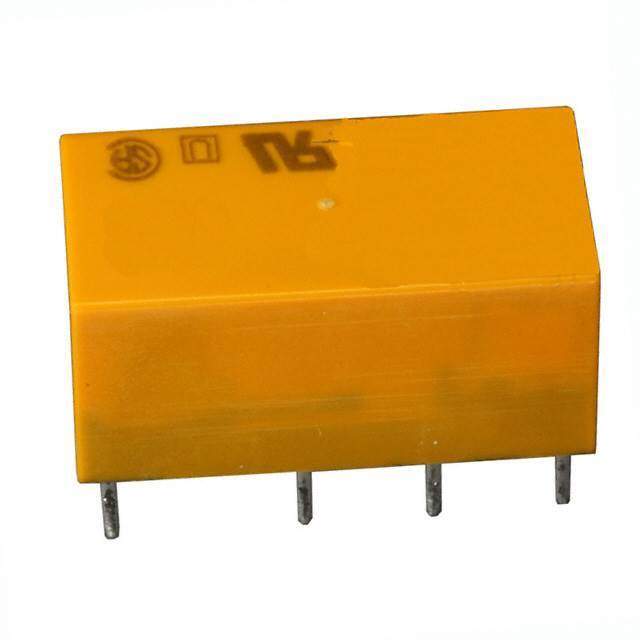

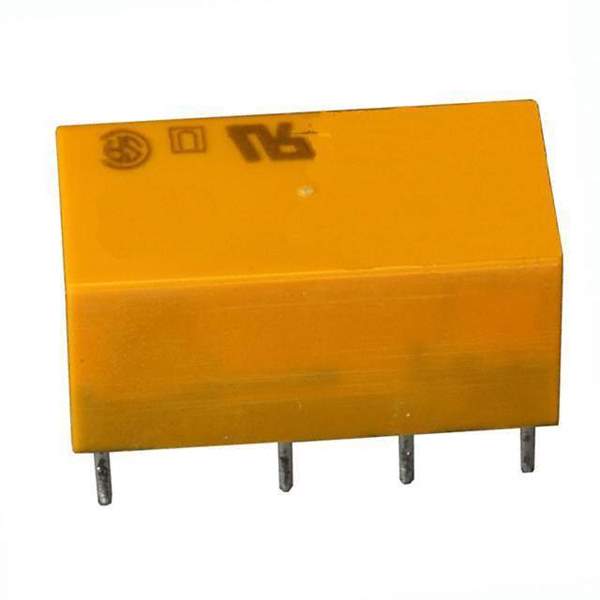

DS2E-SL2-DC48V Real Image1 DS2E-SL2-DC48V Real Image2
Same model may have multiple batches, images only for reference.
DS2E-SL2-DC48V Real Image1 DS2E-SL2-DC48V Real Image2
DS2E-SL2-DC48V Real Image1 DS2E-SL2-DC48V Real Image2
Same model may have multiple batches, images only for reference.

DS2E-SL2-DC48V

Part No DS2E-SL2-DC48V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 48VDC / General Purpose Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr Panasonic
Series DS
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 3.8 mA
Coil Type Latching, Dual Coil
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 33.6 VDC
Must Release Voltage -
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 12.8 kOhms
Base Product Number DS2E
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Standard Package 50 pcs
Win Source Part Number 1381947-DS2E-SL2-DC48V
Ultra Librarian 3D Model Ultra Librarian DS2E-SL2-DC48V CAD Model

Description

The DS2E-SL2-DC48V is a DPDT signal relay from Panasonic's DS series, manufactured by Panasonic.

  • Termination: PC Pin
  • Design: Sealed, Fully Protected
  • Coil Voltage: 48VDC
  • Coil Resistance: 12.8 kOhms
  • Coil Current: 3.8mA
  • Operate Time: 10ms
  • Contact Rating: 2A (Up to 250VAC and 220VDC)
  • Mounting: Through-Hole
  • Operating Temperature: -40°C to 70°C
  • Status: Obsolete
