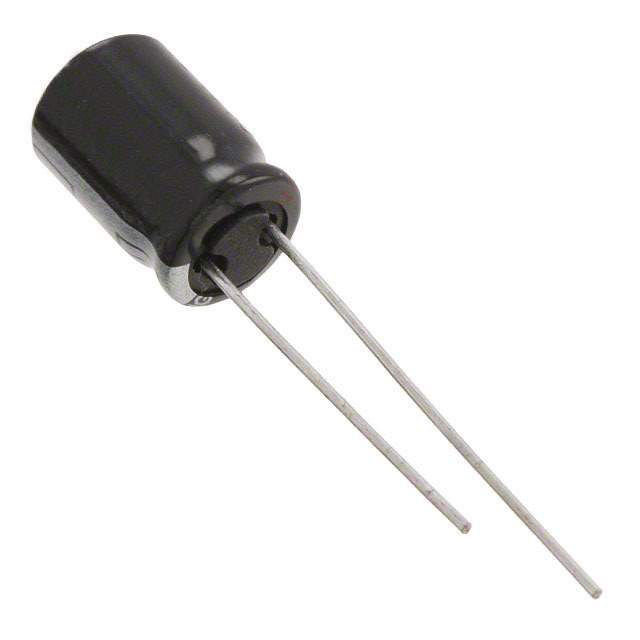

Same model may have multiple batches, images only for reference.

ECA-1CHG471

Name: ECA-1CHG471
Brand: Panasonic
SKU: 1174685
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ECA-1CHG471
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 16V RADIAL / 470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	NHG-A
Package	Bulk
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	310 mA @ 120 Hz
Ripple Current @ High Frequency	465 mA @ 100 kHz
Lead Spacing	0.138" (3.50mm)
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ECA-1CH
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	ECA1CHG471,P5532
Standard Package	200
Win Source Part Number	1174685-ECA-1CHG471
Ultra Librarian 3D Model	Ultra Librarian ECA-1CHG471 CAD Model

Description

The Panasonic NHG-A ECA-1CHG471 is a radial can aluminum electrolytic capacitor with a capacitance of 470µF and a voltage rating of 16V.

Tolerance: ±20%
Ripple Current (Low Frequency): 310mA
Ripple Current (High Frequency): 465mA
Application: General Purpose
Standard Package: 200
Height: 0.492" (12.50mm)
Lead Spacing: 0.138" (3.50mm)
Operating Temperature: -55°C to 105°C
Lifetime: 1000 Hours @ 105°C
