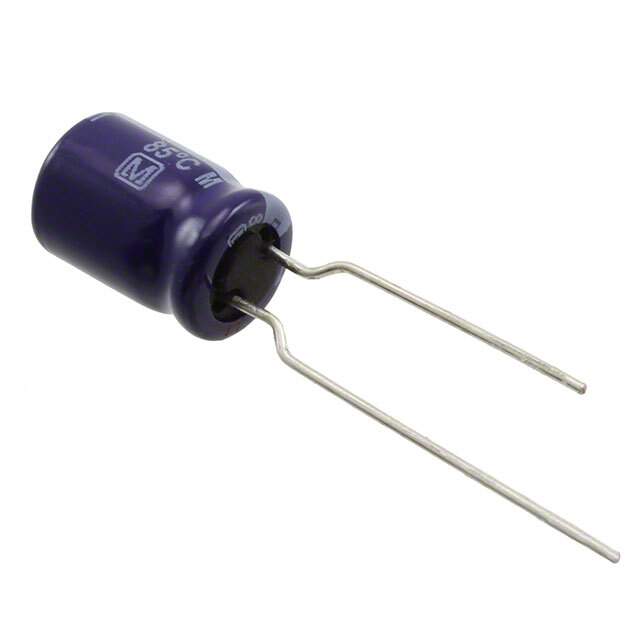

ECA-1CM471B Real Image
Same model may have multiple batches, images only for reference.

ECA-1CM471B

Part No ECA-1CM471B
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 16V RADIAL
Datasheet
ECA-1CM471B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging AMMO PACKAGE
Status Active
Capacitance 470μF
Tolerance ±20%
Voltage Rating 16V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 440mA @ 120Hz
Ripple Current - High Frequency 748mA @ 10kHz
Lead Spacing 0.197" (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 1035765-ECA-1CM471B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECA-1CM471B CAD Model

Description

The Panasonic Electronic Components 1035765-ECA-1CM471B is a polarized capacitor manufactured by Panasonic Electronic Components.

  • Packaging: Ammo
  • Voltage Rating: 16V
  • Capacitance: 470μF
  • Tolerance: ±20%
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: Radial, Can
  • Ripple Current - Low Frequency: 440mA @ 120Hz
  • Ripple Current - High Frequency: 748mA @ 10kHz
  • Supply and Demand Status: Balanced
