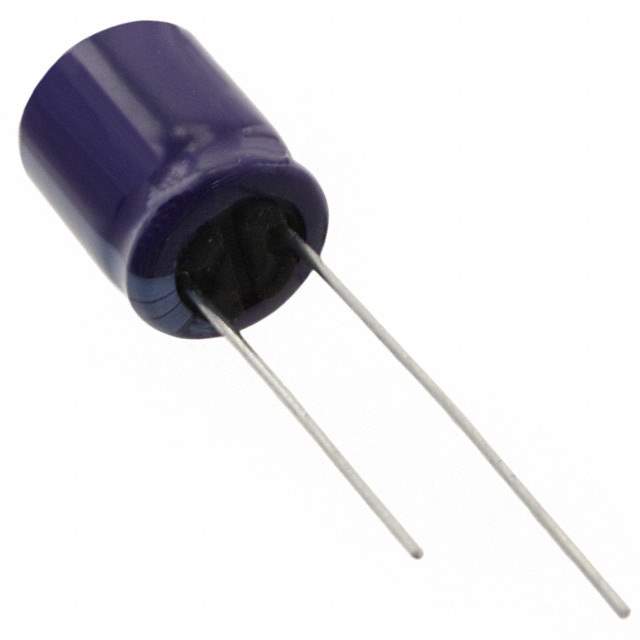

Same model may have multiple batches, images only for reference.

ECA-1VM331B

Name: ECA-1VM331B
Brand: Panasonic
SKU: 1328550
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ECA-1VM331B
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 35V RADIAL / 330 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Tape & Box (TB)
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	440 mA @ 120 Hz
Ripple Current @ High Frequency	748 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.531" (13.50mm)
Mounting	Through Hole
Case / Package	Radial, Can
Base Product Number	ECA-1VM
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	ECA1VM331B,P10385TB
Standard Package	500
Win Source Part Number	1328550-ECA-1VM331B
Ultra Librarian 3D Model	Ultra Librarian ECA-1VM331B CAD Model

Description

The ECA-1VM331B is an aluminum electrolytic capacitor designed for general-purpose use.

Manufacturer: Unknown
Capacitance: 330 µF
Voltage Rating: 35V
Tolerance: ±20%
Lead Spacing: 0.197" (5.00mm)
Package/Case: Radial, can
Mounting Type: Through-Hole
Ripple Current: 440 mA @ 120 Hz and 748 mA @ 10 kHz
Lifetime: 2000 hours @ 85°C
Temperature Range: -40°C to 85°C
ROHS3 Compliant: Yes
ECCN: EAR99
