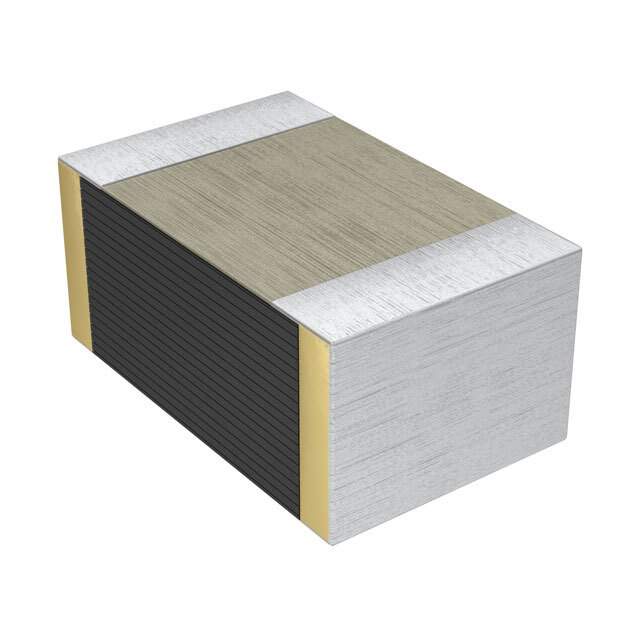

The ECH-U1H221GX5 is a 220pF surface mount metallized film capacitor manufactured by Panasonic. These capacitors are designed for a wide range of applications requiring stable performance and long operational life. The ECH-U series is known for its compact size and excellent electrical characteristics.

Applications

• Noise suppression in electronic circuits
• Bypass and decoupling in power supplies
• Filtering in audio equipment
• Timing circuits
• Signal coupling

Features

• Metallized film construction: Offers excellent stability and reliability.
• Surface mount design: Enables high-density mounting on PCBs.
• Compact size: Saves valuable board space.
• RoHS compliant: Meets environmental regulations.
• Excellent electrical characteristics: Provides stable capacitance over a wide temperature range.

Benefits

• Improved circuit performance: Stable capacitance ensures consistent operation.
• Reduced board space: Compact size allows for smaller and more efficient designs.
• Enhanced reliability: Metallized film construction provides long operational life.
• Simplified assembly: Surface mount design facilitates automated assembly.
• Environmentally friendly: RoHS compliance ensures minimal environmental impact.

Additional Details

The ECH-U1H221GX5 has a capacitance of 220pF with a tolerance of ±2%. It has a rated voltage of 50VDC. The operating temperature range is typically -40°C to +85°C. The capacitor is constructed using a metallized polypropylene film, which provides excellent stability and low losses. The package is a surface mount type, making it suitable for automated assembly processes. The typical dimensions are 3.2mm x 1.6mm x 1.1mm.

Panasonic's ECH-U series film capacitors are widely used in various electronic devices due to their reliable performance and compact size. The ECH-U1H221GX5 is a popular choice for applications where space is limited and stable capacitance is required.
