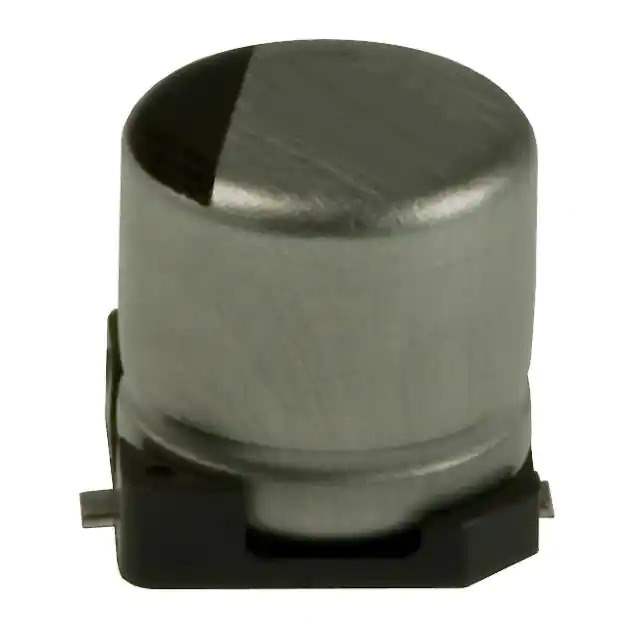

EEE-1CA470WR Real Image
Same model may have multiple batches, images only for reference.

EEE-1CA470WR

Part No EEE-1CA470WR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 16V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic
Series S
Package Tape & Reel
Product Status Not For New Designs
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 39 mA @ 120 Hz
Ripple Current @ High Frequency 66.3 mA @ 10 kHz
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-1CA
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 588202-EEE-1CA470WR
Ultra Librarian 3D Model Ultra Librarian EEE-1CA470WR CAD Model

Description

The EEE-1CA470WR is an aluminum electrolytic capacitor from the S series manufactured by Panasonic.

  • Size/Dimension: 0.197" Dia (5.00mm)
  • Capacitance: 47 μF
  • Tolerance: ±20%
  • Rated Voltage: 16 V
  • Application: Automotive
  • AEC-Q200: Meets AEC-Q200 ratings
  • Mounting Type: Surface Mount
  • Package/Case: Radial, can - SMD
  • Temperature Range: -40°C to 85°C
