Same model may have multiple batches, images only for reference.

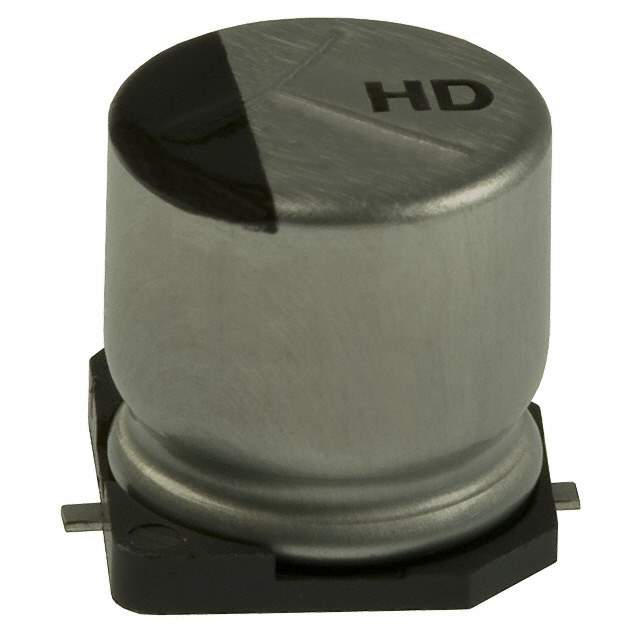

EEE-HD1V220AP Real Image
Same model may have multiple batches, images only for reference.

EEE-HD1V220AP

Part No EEE-HD1V220AP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series HD
Package Tape & Reel
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, High Temperature Reflow
Ripple Current @ Low Frequency 55 mA @ 120 Hz
Ripple Current @ High Frequency 93.5 mA @ 10 kHz
Impedance 4 Ohms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.228" (5.80mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-HD
Other Names PCE4964CT,PCE4964DKR,EEEHD1V220AP,PCE4964TR,Q5310136AAAAAA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307309-EEE-HD1V220AP
Ultra Librarian 3D Model Ultra Librarian EEE-HD1V220AP CAD Model

Description

The 1307309-EEE-HD1V220AP is an aluminum electrolytic capacitor designed for automotive applications.

  • Series: HD
  • Packaging: Tape and reel
  • Capacitance: 22 µF
  • Tolerance: ±20%
  • Rated Voltage: 35 V
  • AEC-Q200 Rated: Yes
  • Mounting: SMD (SMT)
  • Lead Spacing: None
  • Impedance: 4 Ohms
  • ESR (Equivalent Series Resistance): None
  • Lifetime: 5000 Hrs @ 105°C
  • Polar: Yes
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Package/Case: Radial, can - SMD
  • Operating Temperature Range: -40°C ~ 105°C
  • MSL Level: 1 (Unlimited)
  • Manufacturer: Panasonic Electronic Components
  • Ripple Current @ Low Frequency: 55 mA @ 120 Hz
  • Ripple Current @ High Frequency: 93.5 mA @ 10 kHz
