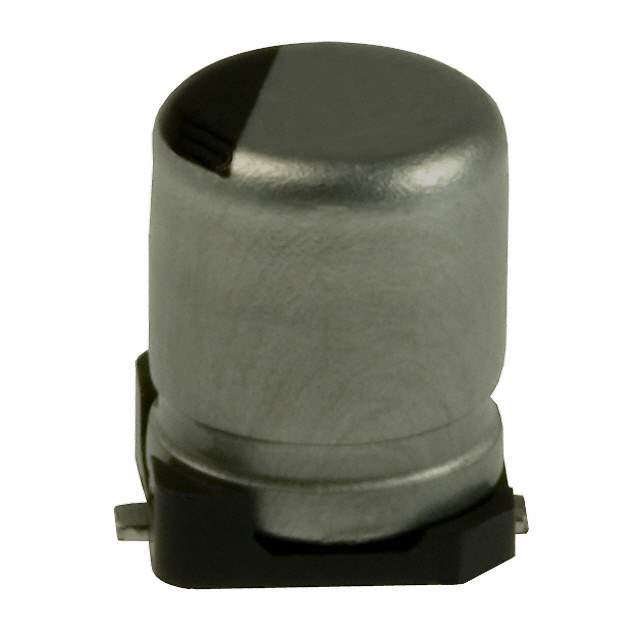

The Panasonic EEE1EA100WR is a surface mount aluminum electrolytic capacitor. It is part of the EA series of capacitors from Panasonic, known for its high endurance and ripple current capabilities. These capacitors are designed for use in a variety of electronic circuits requiring stable and reliable performance.

Applications

• Power Supplies: Used as filtering capacitors in power supplies to smooth out voltage fluctuations.
• Inverters: Employed in inverters for DC-AC conversion, contributing to stable output.
• DC-DC Converters: Utilized for voltage regulation and noise reduction in DC-DC converters.
• LED Lighting: Found in LED drivers and power circuits for smoothing current and voltage.
• Consumer Electronics: Used in various electronic devices, including audio equipment, televisions, and appliances, for power filtering and signal coupling.

Features

• High Endurance: Offers a long operational life, enhancing the reliability of electronic devices.
• Surface Mount Design: Facilitates easy placement and soldering on PCBs, streamlining manufacturing processes.
• Compact Size: Allows for efficient use of space on circuit boards, enabling miniaturization of electronic devices.
• High Ripple Current Capability: Able to handle large alternating current components, reducing heat generation and extending capacitor lifespan.
• RoHS Compliant: Meets environmental standards, ensuring compliance with regulations regarding hazardous substances.

Benefits

• Enhanced Reliability: Provides stable and dependable performance, minimizing the risk of device failure.
• Space Saving: Compact design enables higher component density on circuit boards, allowing for smaller and more portable devices.
• Improved Performance: High ripple current capability ensures efficient operation even under demanding conditions, enhancing overall circuit performance.
• Cost Effective: Long lifespan and minimal maintenance requirements reduce the total cost of ownership.
• Environmental Compliance: RoHS compliance ensures environmentally friendly operation, meeting regulatory requirements and promoting sustainability.

Specifications

While exact specifications such as capacitance, voltage rating, and operating temperature range vary, typical specifications for the EEE1EA100WR capacitor include a capacitance of 10µF, a voltage rating of 25V, and an operating temperature range of -40°C to +85°C. It is designed to offer a long operational life, typically ranging from 2,000 to 5,000 hours at its rated temperature. The capacitor features a low equivalent series resistance (ESR), which reduces power dissipation and enhances its ability to handle high ripple currents. The specific dimensions can be found in the product datasheet, ensuring proper placement and fit on circuit boards. Please refer to the official Panasonic datasheet for comprehensive technical information.
