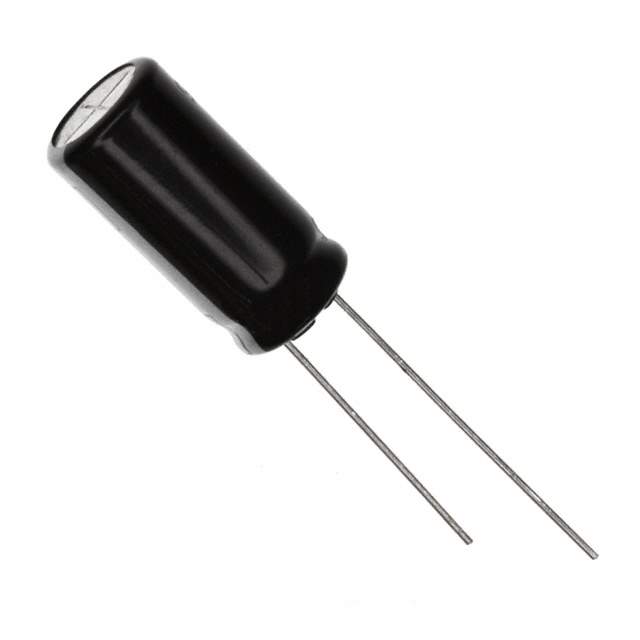

Same model may have multiple batches, images only for reference.

EEU-EE2C470

Name: EEU-EE2C470
Brand: Panasonic
SKU: 1336755
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEU-EE2C470
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 160V RADIAL / 47 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	EE-A
Package	Bulk
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	160 V
Lifetime @ Temp.	8000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	372.7 mA @ 120 Hz
Ripple Current @ High Frequency	1.065 A @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	EEU-EE
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1336755-EEU-EE2C470
Ultra Librarian 3D Model	Ultra Librarian EEU-EE2C470 CAD Model

Alternative Products

Description

The EEU-EE2C470 is an aluminum electrolytic capacitor manufactured by Panasonic.

Capacitance: 47µF
Voltage Rating: 160V
Polarization: Polarized
Tolerance: ±20%
Ripple Current (Low Frequency): 372.7mA @ 120Hz
Ripple Current (High Frequency): 1.065A @ 100kHz
Package: Radial, can
Mounting Type: Through-hole
Height: 22.00mm
Diameter: 10.00mm
Standard Package: 200
Lifetime: 8000 hours @ 105°C
Application: General Purpose
