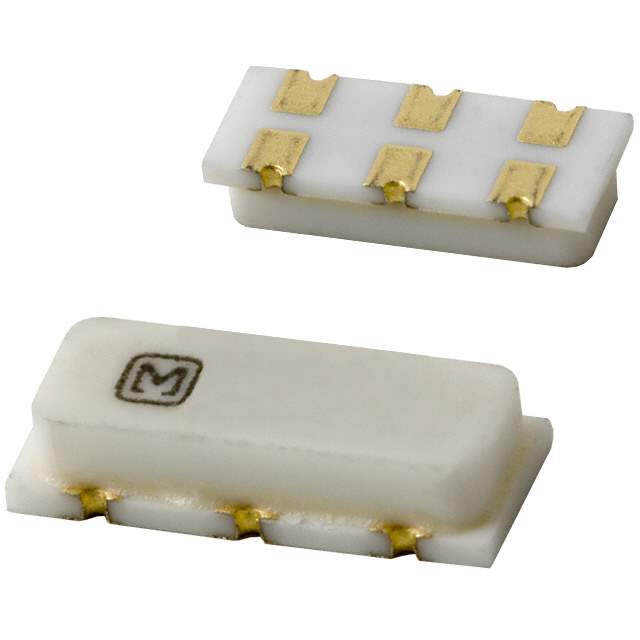

EFOS8004E5 Real Image
Same model may have multiple batches, images only for reference.

EFOS8004E5

Part No EFOS8004E5
Manufacturer Panasonic
Catalog Resonators
Description SMD, 3.2X7.8, W/ Cap, 0.5%, -20+80, 8.0000MHZ, T/r<tx
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 33 pF
Case / Package SMD/SMT
Composition Ceramic
Frequency 8 MHz
Frequency Stability 2000 ppm
Frequency Tolerance 0.5 %
Height 1.6002 mm
Lead Free Lead Free
Length 7.7978 mm
Max Operating Temperature 80 °C
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Pins 6
Packaging Cut Tape (CT)
RoHS Compliant
Width 3.2004 mm
Win Source Part Number 1214013-EFOS8004E5
Categories Resonators
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EFOS8004E5 CAD Model

Description

The EFOS8004E5 is a ceramic resonator manufactured by Panasonic.

  • Packaging: Cut Tape (CT)
  • Frequency: 8MHz
  • Capacitance: 33pF
  • Frequency Stability: 2000 ppm
  • Frequency Tolerance: 0.5%
  • Supply and Demand Status: Limited
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Operating Temperature: -20°C to 80°C
