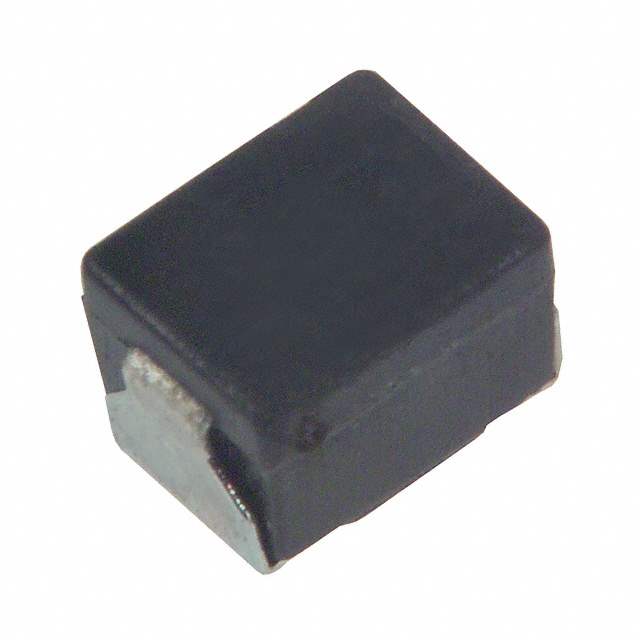

ELJ-NA2R7JF Real Image
Same model may have multiple batches, images only for reference.

ELJ-NA2R7JF

Part No ELJ-NA2R7JF
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 2.7UH 105MA 3.6 OHM
Datasheet
ELJ-NA2R7JF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Material - Core Non-Magnetic
Inductance 2.7μH
Tolerance ±5%
Current Rating 105mA
DC Resistance (DCR) 3.6 Ohm Max
Q @ Freq 13 @ 7.96MHz
Frequency - Self Resonant 70MHz
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.094" (2.40mm)
Win Source Part Number 112772-ELJ-NA2R7JF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELJ-NA2R7JF CAD Model

Description

Product Overview

The ELJ-NA2R7JF is a precision-engineered chip inductor that enhances the performance of RF circuits by providing excellent inductance and minimal loss.

Features and Benefits

  • High Efficiency: Optimizes electronic efficiency in RF circuits.
  • Compact and Lightweight: Easy to fit into densely populated boards.
  • Consistent Performance: Maintains performance over extended periods and varied conditions.

Applications

  • RF transceiver modules
  • Impedance matching networks
  • Custom electronic solutions
  • Antenna applications

Additional Details

Developed with advanced materials, the ELJ-NA2R7JF meets high standards for various electronic setups.
