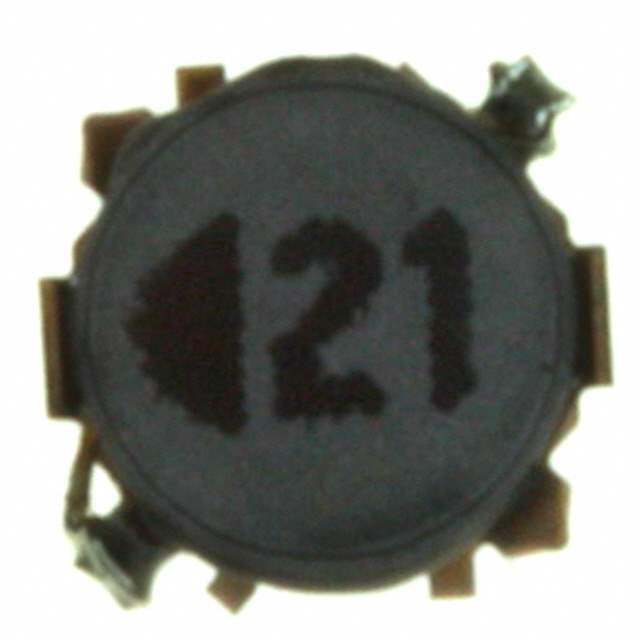

ELL-4LG4R7NA Real Image
Same model may have multiple batches, images only for reference.

ELL-4LG4R7NA

Part No ELL-4LG4R7NA
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.3A 90 MOHM SMD
Datasheet
ELL-4LG4R7NA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 4.7μH
Tolerance ±30%
Current Rating 1.3A
Current - Saturation 1.1A
DC Resistance (DCR) 90 mOhm
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 116515-ELL-4LG4R7NA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELL-4LG4R7NA CAD Model

Description

Description

The ELL-4LG4R7NA inductor offers superior electrical characteristics suited for a wide range of electronic devices. Engineered for excellence, this component ensures efficient energy storage and transfer.

Features and Benefits

  • Excellent energy storage capabilities
  • Low incremental current
  • Durable and reliable performance

Applications

  • Switching power supplies
  • Telecommunication devices
  • Consumer electronics
  • DC-DC converters
